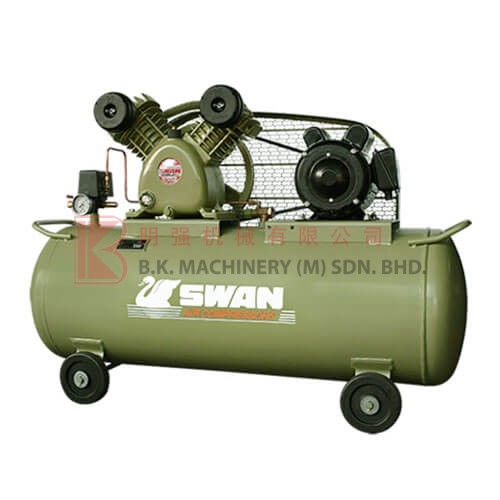

SWAN Piston Compressor – SVP202

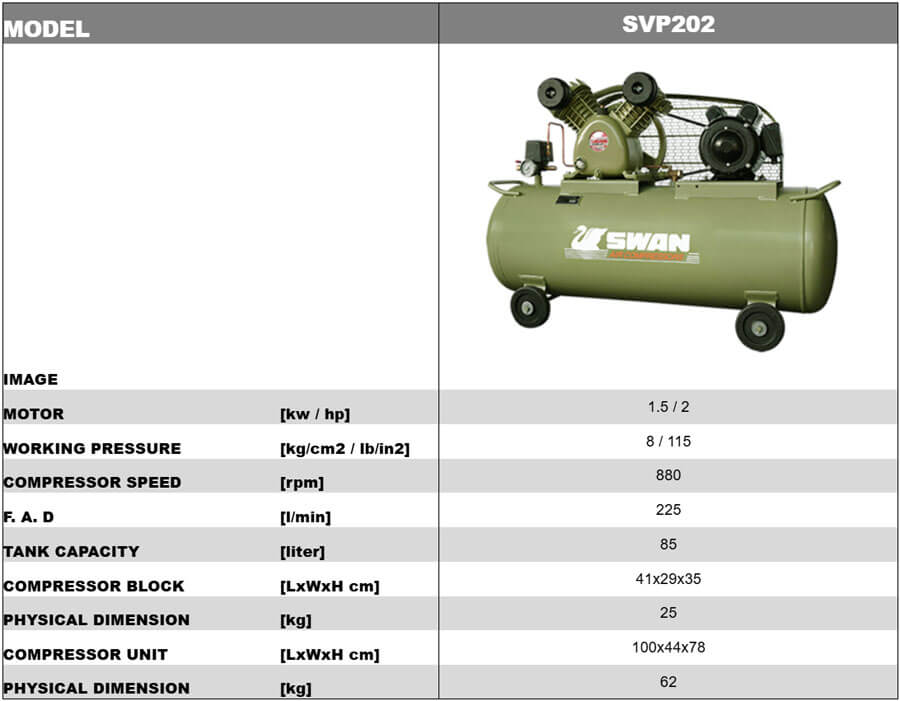

MODEL: SWAN SVP202

• Motor (kW / hp): 1.5 /2
• Working Pressure (kg/cm2 / Ib/in2): 8 / 115
• Compressor Speed (rpm): 880
• F.A.D [I/min]: 225
• Tank Capacity (Liter): 85
• Compressor Block (L x W x H) (cm): 41 x 29 x 35
• Physical Dimension (kg): 25
• Compressor Unit (L x W x H) (cm): 100 x 44 x 78
• Physical Dimension (kg): 62
