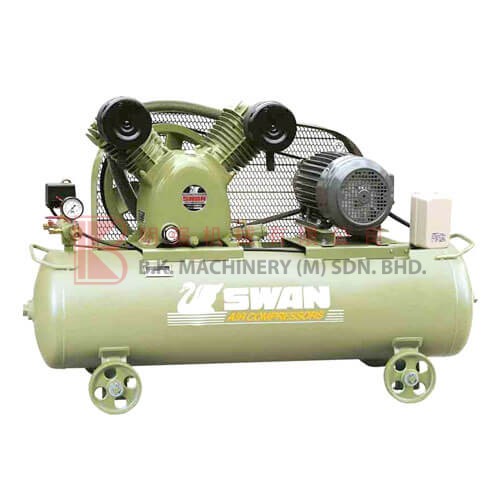

SWAN Piston Compressor – SVP205

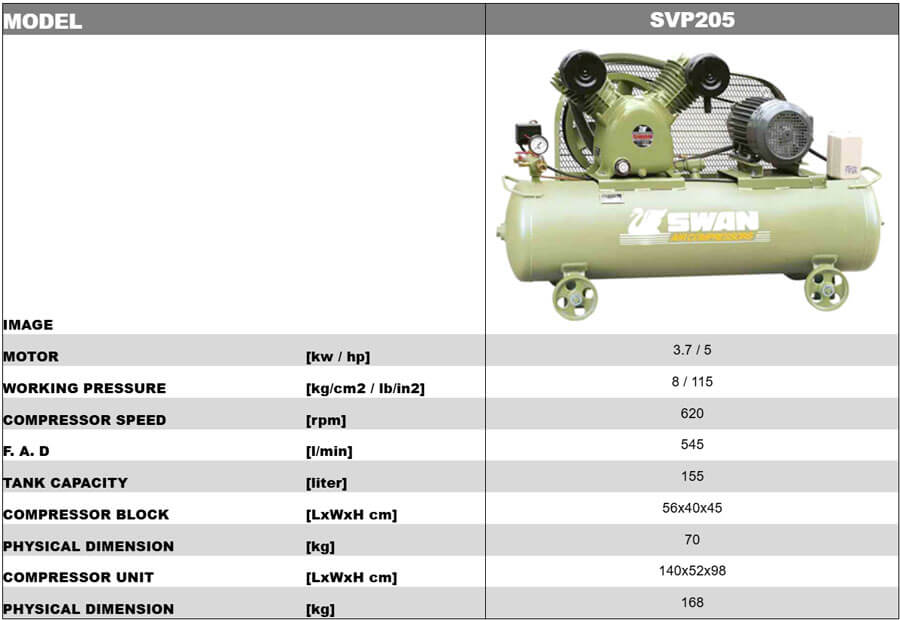

MODEL: SWAN SVP 205

• Motor (kW / hp): 3.7 / 5
• Working Pressure (kg/cm2 / Ib/in2): 8 / 115
• Compressor Speed (rpm): 620
• F.A.D (I/min): 545
• Tank Capacity (Liter): 155
• Compressor Block (L x W x H) (cm): 56 x 40 x 45
• Physical Dimension (kg): 70
• Compressor Unit (L x W x H cm): 140 x 52 x 98
• Physical Dimension (kg): 168
