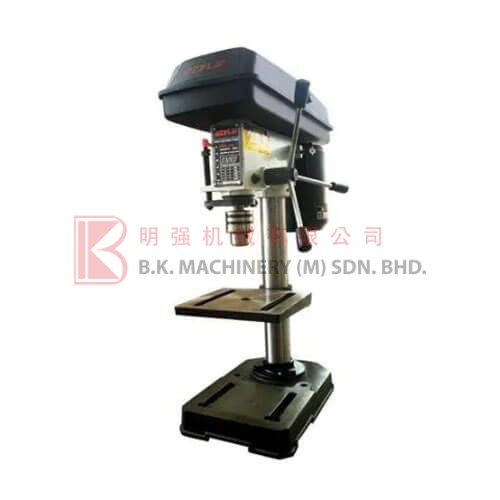

EZYLIF Bench Drilling Machine – VD 13

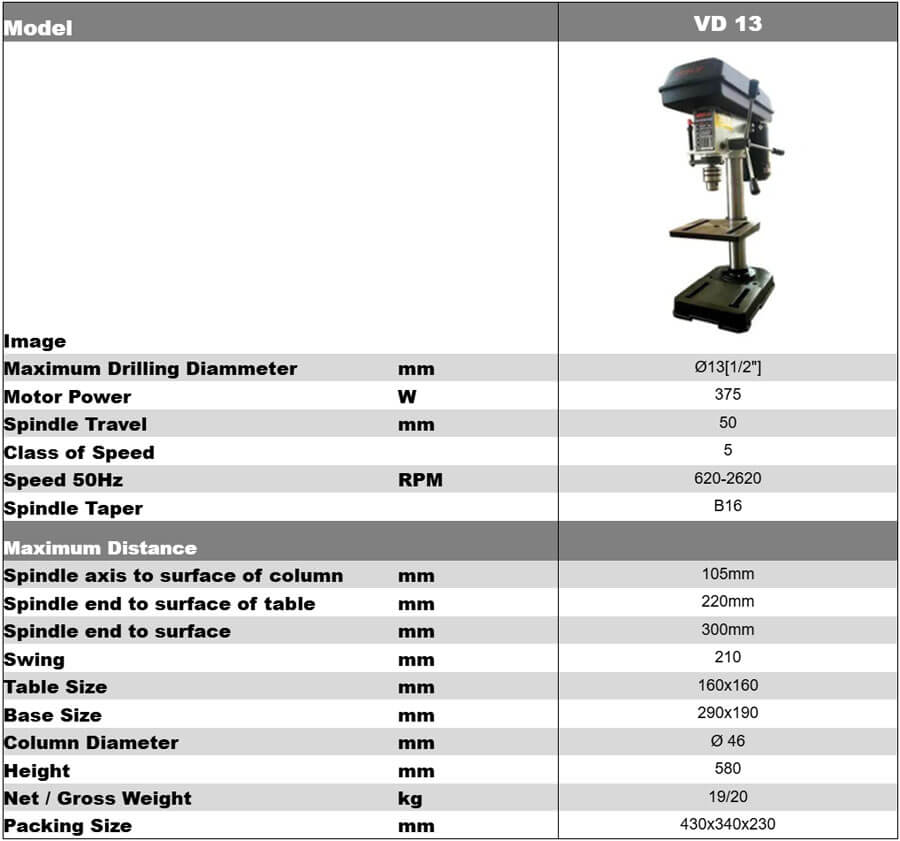

MODEL: EZYLIF VD 13

• Maximum Drilling Diameter (mm): ø13[1/2″]
• Motor Power (W): 375
• Spindle Travel (mm): 50
• Class Of Speed: 5
• Speed 50Hz (RPM): 620-2620
• Spindle Taper: B16

MAXIMUM DISTANCE

• Spindle Axis To Surface Of Column (mm): 105 mm
• Spindle End To Surface Of Table (mm): 220 mm
• Spindle End To Surface (mm): 300 mm
• Swing (mm): 210
• Table Size (mm): 160 x 160
• Base Size (mm): 290 x 190
• Column Diameter (mm): ø 46
• Height (mm): 580
• Net / Gross Weight (kg): 19/20
• Packing Size (mm): 430 x 340 x 230
