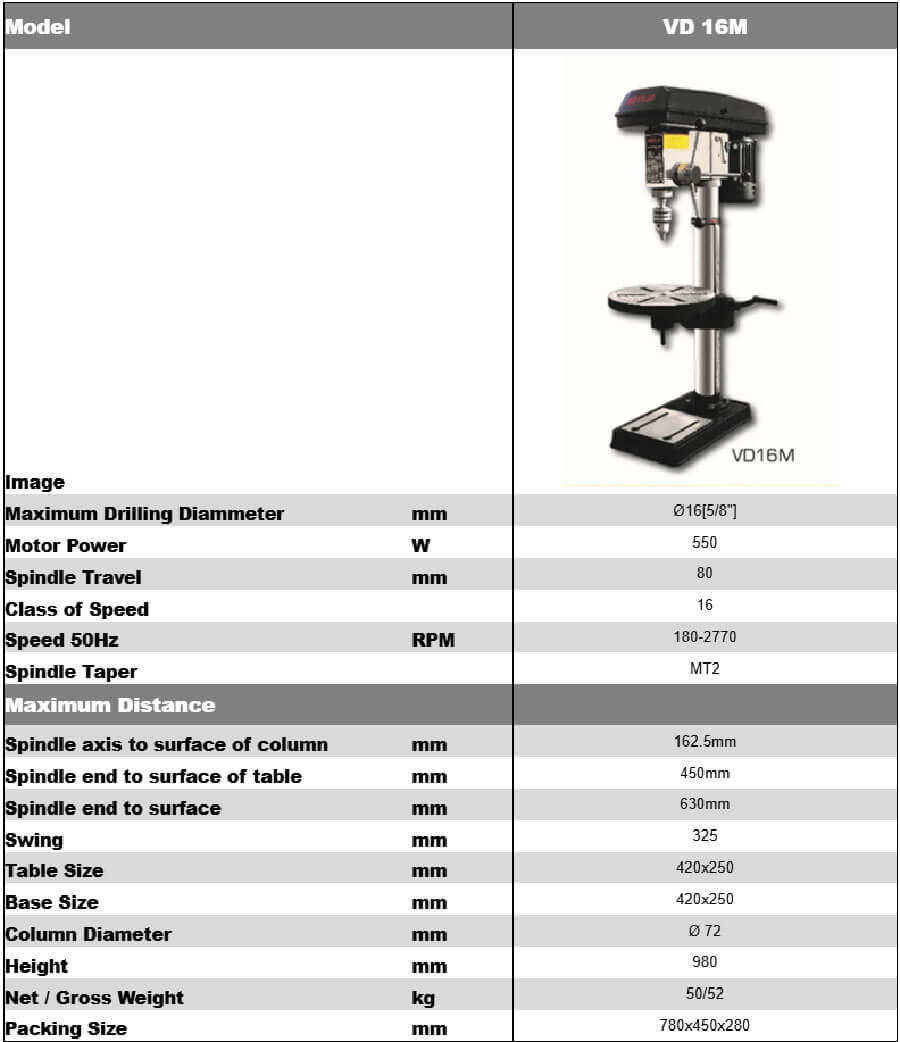

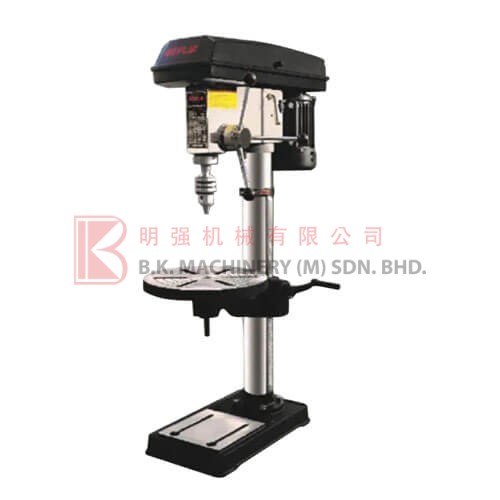

EZYLIF Bench Drilling Machine – VD 16M

MODEL: EZYLIF VD 16M

• Maximum Drilling Diameter (mm): ø16[5/8″]
• Motor Power (W): 550
• Spindle Travel (mm): 80
• Class Of Speed: 16
• Speed 50Hz (RPM): 180-2770
• Spindle Taper: MT2

MAXIMUM DISTANCE

• Spindle Axis To Surface Of Column (mm): 162.5 mm
• Spindle End To Surface Of Table (mm): 450 mm
• Spindle End To Surface (mm): 630 mm
• Swing (mm): 325
• Table Size (mm): 420 x 250
• Base Size (mm): 420 x 250
• Column Diameter (mm): ø 72
• Height (mm): 980
• Net / Gross Weight (kg): 50/52
• Packing Size (mm): 780 x 450 x 280
