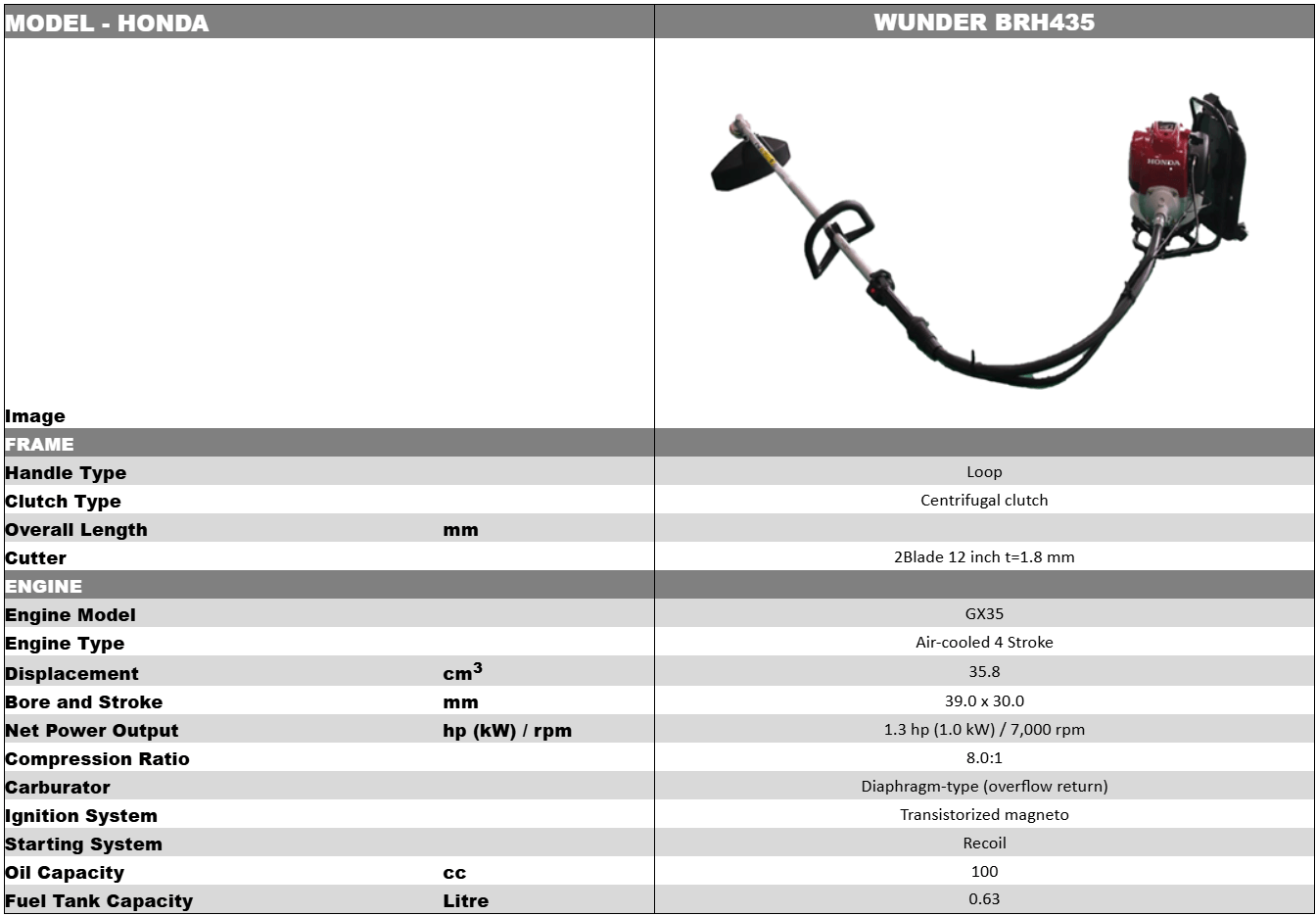

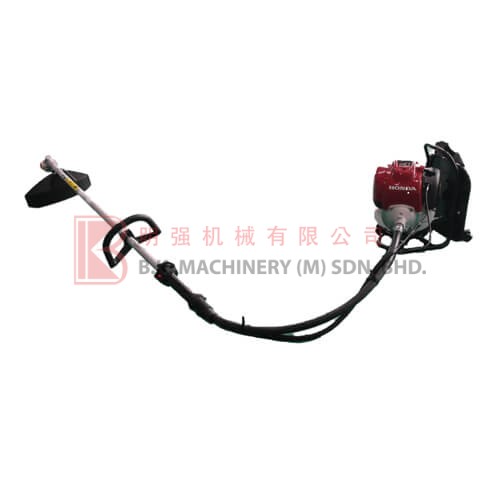

HONDA Brush Cutter – WUNDER BRH435

MODEL: HONDA WUNDER BRH435

FRAME

• Handle Type: Loop
• Clutch Type: Centrifugal Clutch
• Overall Length (mm):
• Cutter: 2Blade 12 inch t=1.8 mm

ENGINE

• Engine Model: GX35
• Engine Type: Air-cooled 4-stroke
• Displacement (cm³): 35.8
• Bore And Stroke (mm): 39.0 x 30.0
• Net Power Output (hp) (kW) / (rpm): 1.3 hp (1.0 kW) / 7,000 rpm
• Compression Ratio: 8:0:1
• Carburator: Diaphragm-type (Overflow Return)
• Ignition System: Transistorized Magneto
• Starting System: Recoil
• Oil Capacity (cc): 100
• Fuel Tank Capacity (Litre): 0.63
