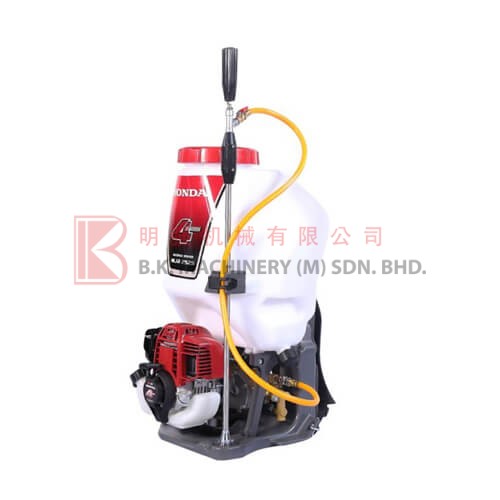

HONDA Backpack Sprayers – WJR2525T

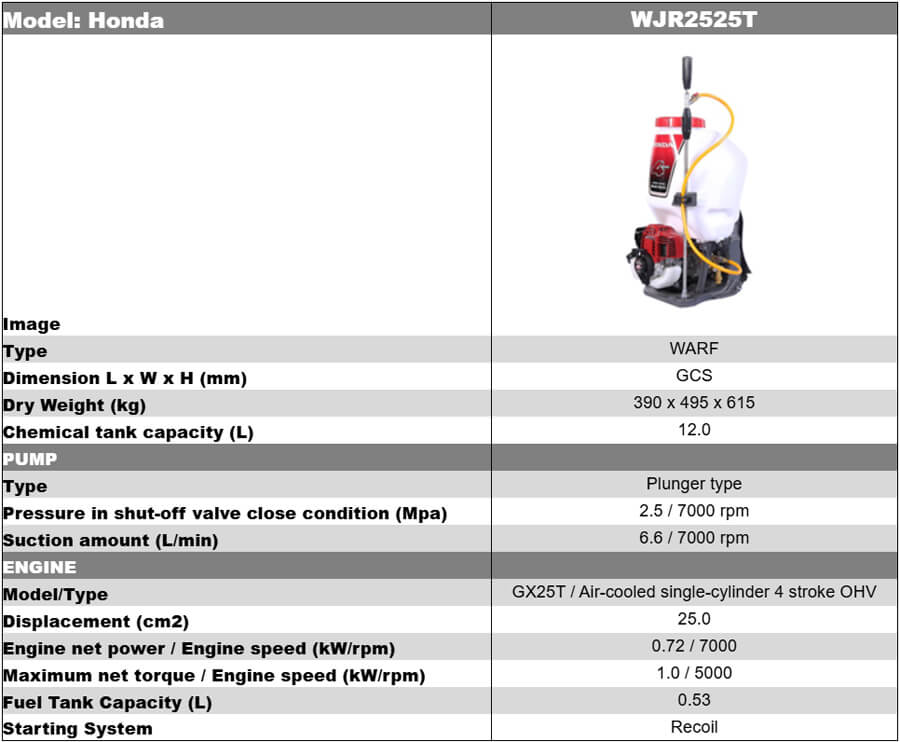

MODEL: HONDA WJR2525T

• Type: WARF
• Frame Type: GCS
• Dimension (L x W x H) (mm): 390 x 495 x 615
• Dry Weight (kg): 12.0

PUMP

• Type: Plunger Type
• Pressure In Shut-off Valve Close Condition (MPa): 2.5 / 7000 rpm
• Suction Amount: (L/min): 6.6 / 7000 rpm

ENGINE

• Model / Type: GX25T / Air-cooled single-cylinder 4-stroke OHV
• Displacement (cm²): 25.0
• Engine Net Power / Engine Speed (kW/rpm): 0.72 / 7000
• Maximum Net Torque / Engine Speed (kW/rpm): 1.0 / 5000
• Fuel Tank Capacity (L): 0.53
• Starting System: Recoil
