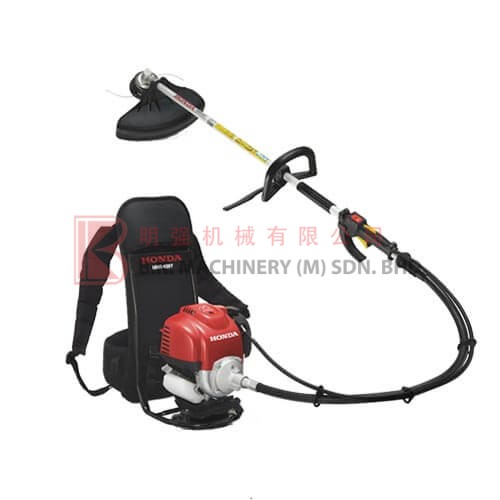

HONDA Brush Cutter – UMR 435T

Type: UMST

MODEL: HONDA UMK 453T

• Type: UMST
• Cutter Type: Mowing cutter
• Overall Length *1: 1922mm
• Overall Height: 422mm
• Overall Width: 637mm
• Throttle Type: Trigger Throttle
• Blade Diammeter: 285mm
• Blade Rotation: 5250rpm*2
• Dry Weight *3: 7.47kg
• Total Installed Weight: 9.04kg

Engine

• Model: GX35T
• Description Code: GCAMT
• Engine Type: 4-stroke, overhead cam single cylinder
• Displacement: 35.8cm³
• Bore x Stroke: 39.0 x 30.0mm
• Net Power (SAE J1349)*: 1.0kW (1.4PS, 1.3 HP) / 7000rpm
• Max. Net Torque (SAE J1349)*: 1.6N.m (0.16 kgf.m, 1.2 lbf.ft) / 5,500rpm
• Compression Ratio: 8.0:1
• Cooling System: Forced Air
• Ignition System: Transistorized magneto ignition
• Ignition Timing: CM5H, CMR5H (NGK)
• Spark Plug: Diaphragm type
• Carburetor: Semi-dry type
• Air Cleaner Pumping Spray
• Lubrication System: 0.1L
• Oil Capacity: Recoil Starter
• Starting System: Ignition primary circuit ground
• Stop Engine: Unleaded Gasoline (Octane 86 or higher)
• Fuel Tank Capacity: 0.63L
• Rotating Direction: Counterclockwise
