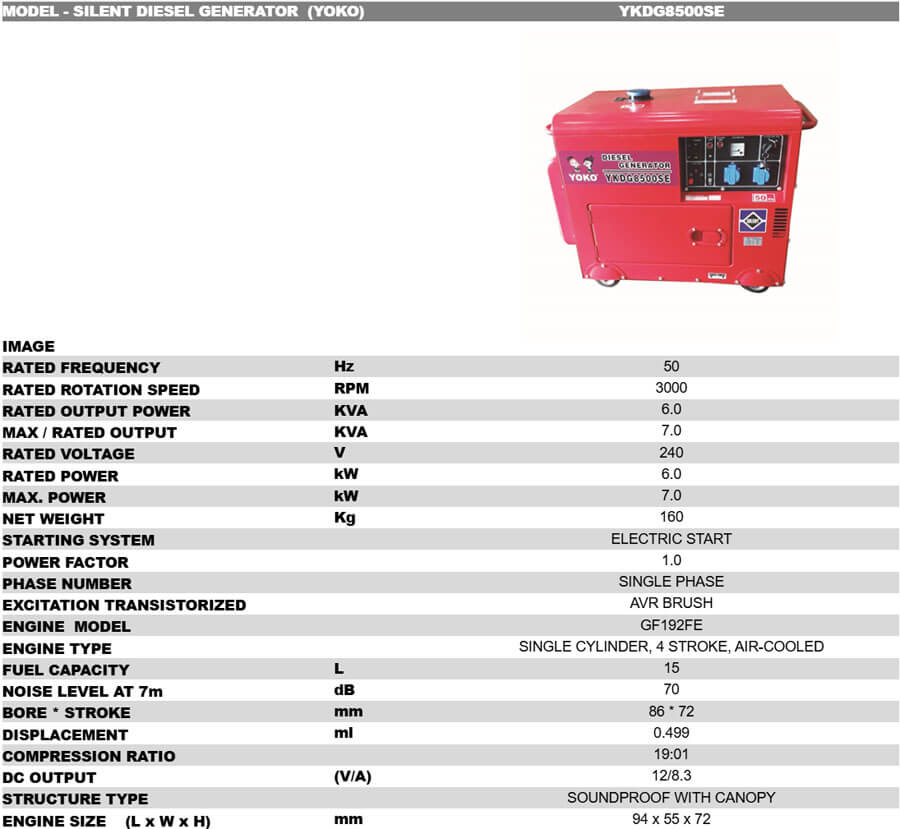

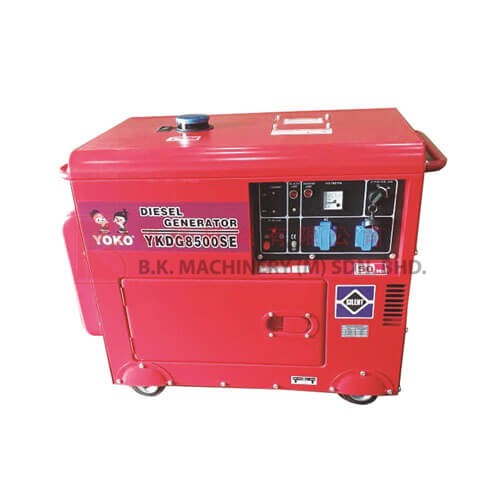

YOKO Generator Set – YKDG8500SE

MODEL: SILENT DIESEL GENERATOR (YOKO) YKDG8500SE

• Rated Frequency (Hz): 50
• Rated Rotation Speed (RPM): 3000
• Rated Output Power (kVa): 6.0
• Max / Rated Output (kVa): 7.0
• Rated Voltage (V): 240
• Rated Power (kW): 6.0
• Max. Power (kW): 7.0
• Net Weight (kg): 160
• Starting System: Electric Start
• Power Factor: 1.0
• Phase Number: Single Phase
• Excitation Transistorized: AVR Brush
• Engine Model: GF192FE
• Engine Type: Single Cylinder, 4-stroke, Air-cooled
• Fuel Capacity (L): 15
• Noise Level At 7M (dB): 70
• Bore * Stroke (mm): 86* 72
• Displacement (ml): 0.499
• Compression Ratio: 19:01
• DC Output (V / A): 12/8.3
• Structure Type: Soundproof With Canopy
• Engine Size (L x W x H) (mm): 94 x 55 x 72
