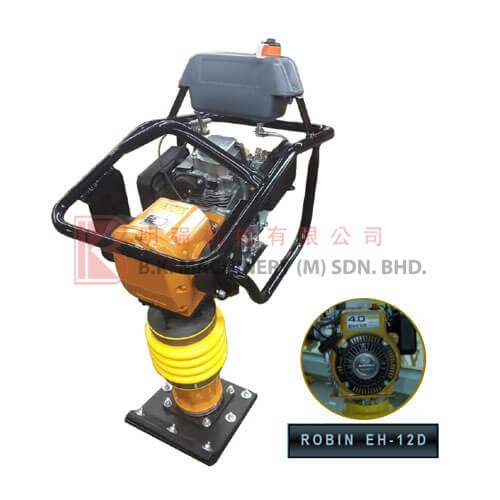

Tamping Rammer – TK-72B – ROBIN EH – 12D

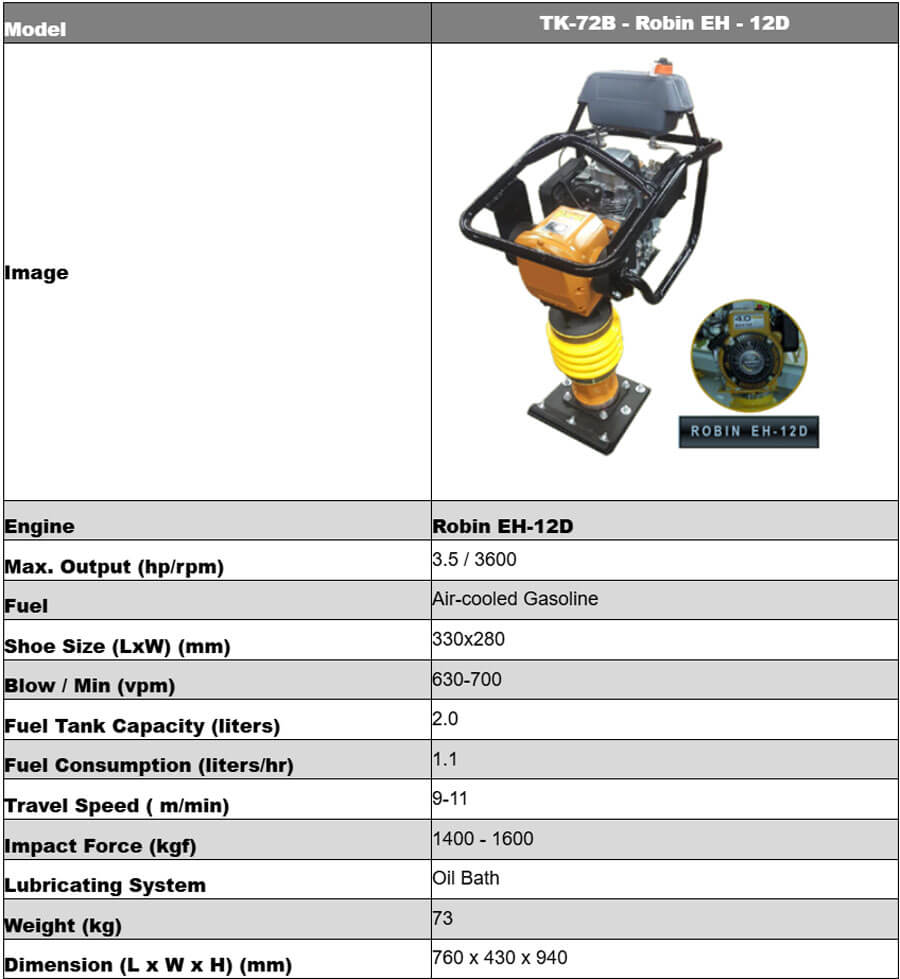

MODEL: TK-72B – ROBIN EH – 12D

• Engine: ROBIN EH-12D
• Max. Output (hp/rpm): 3.5 / 3600
• Fuel: Air Cooled Gasoline
• Shoe Size (L x W) (mm): 330 x 280
• Blow / Min (vpm) 630 – 700
• Fuel Tank Capacity (Liters): 2.0
• Fuel Consumption (Liters/hr): 1.1
• Travel Speed (m/min): 9 – 11
• Impact Force (kgf): 1400 – 1600
• Lubricating System: Oil Bath
• Weight (kg): 73
• Dimension (L x W x H) (mm): 760 x 430 x 940
