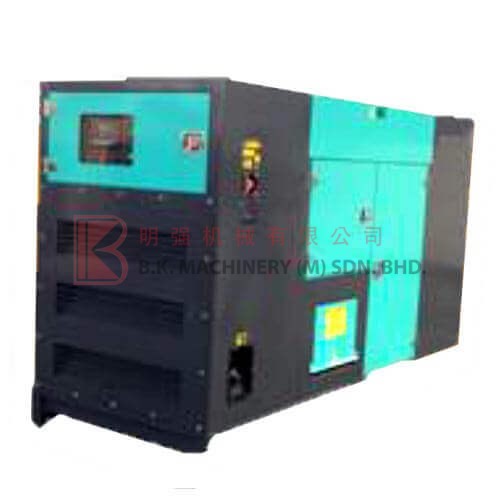

NAKAYA Generator Set – NSA-90SPC

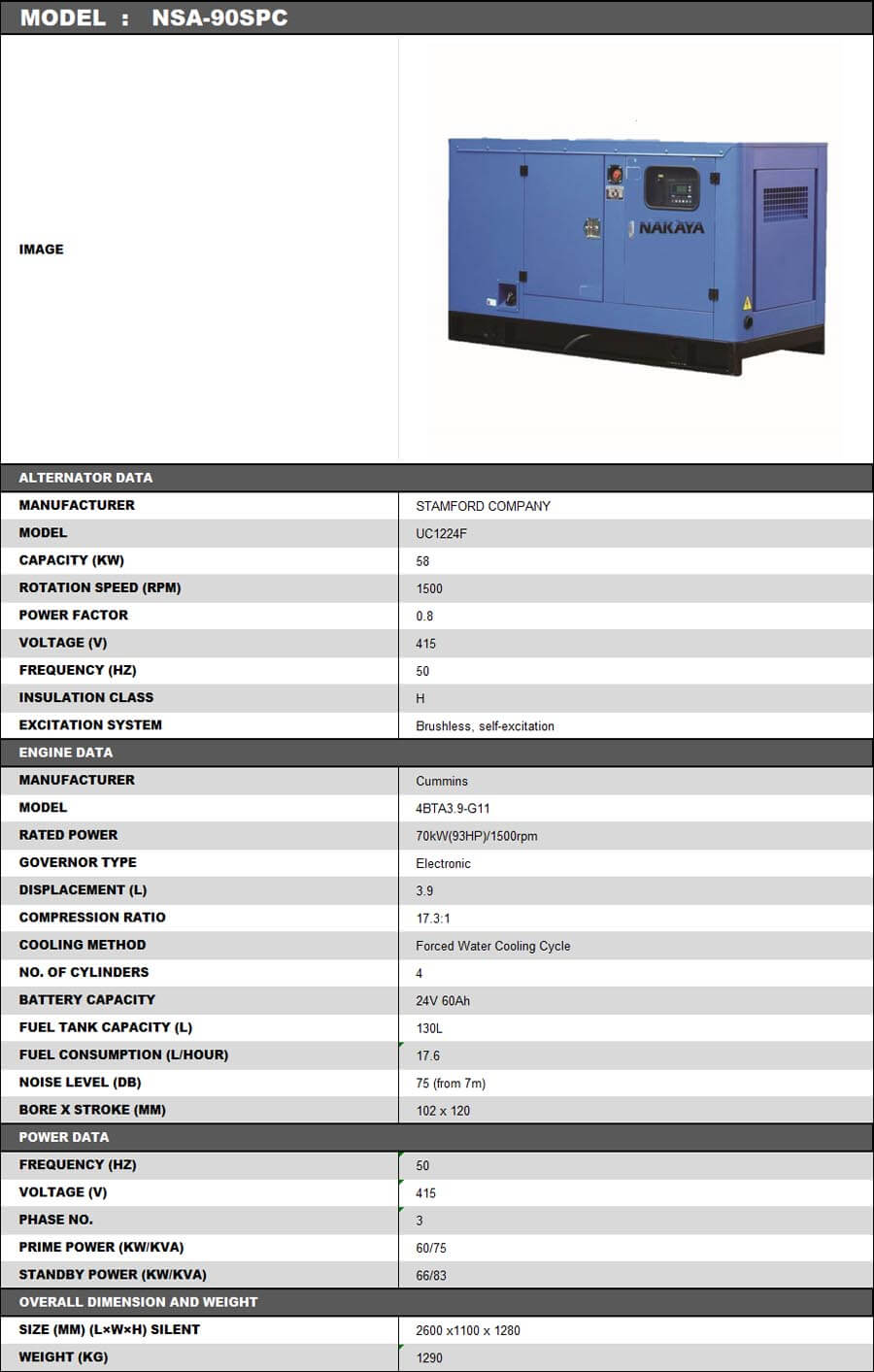

MODEL: NAKAYA NSA-90SPC

ALTERNATOR DATA

• Manufacturer: STAMFORD COMPANY
• Model: UC1224F
• Capacity (kW): 58
• Rotation Speed (rpm): 1500
• Power Factor: 0.8
• Voltage (V): 415
• Frequency (Hz): 50
• Insulation Class: H
• Excitation System: Brushless, Self-excitation

ENGINE DATA

• Manufacturer: Cummins
• Model: 4BTA3.9-G11
• Rated Power: 70kW(93HP)/1500rpm
• Governor Type: Electronic
• Displacement (L): 3.9
• Compression Ratio: 17.3:1
• Cooling Method: Forced Water Cooling Cycle
• No. of Cylinders: 4
• Battery Capacity: 24V 60Ah
• Fuel Tank Capacity (L): 130L
• Fuel Consumption (L/Hour): 17.6
• Noise Level (dB): 75 (from 7m)
• Bore x Stroke (mm): 102 x 120

POWER DATA

• Frequency (Hz): 50
• Voltage (V): 415
• Phase No.: 3
• Prime Power (kW/kVA): 60/75
• Standby Power (kW/kVA): 66/83

OVERALL DIMENSION AND WEIGHT

• Size (mm) (LxWxH) Silent: 2600 x 1100 x 1280
• Weight (kg): 1290
