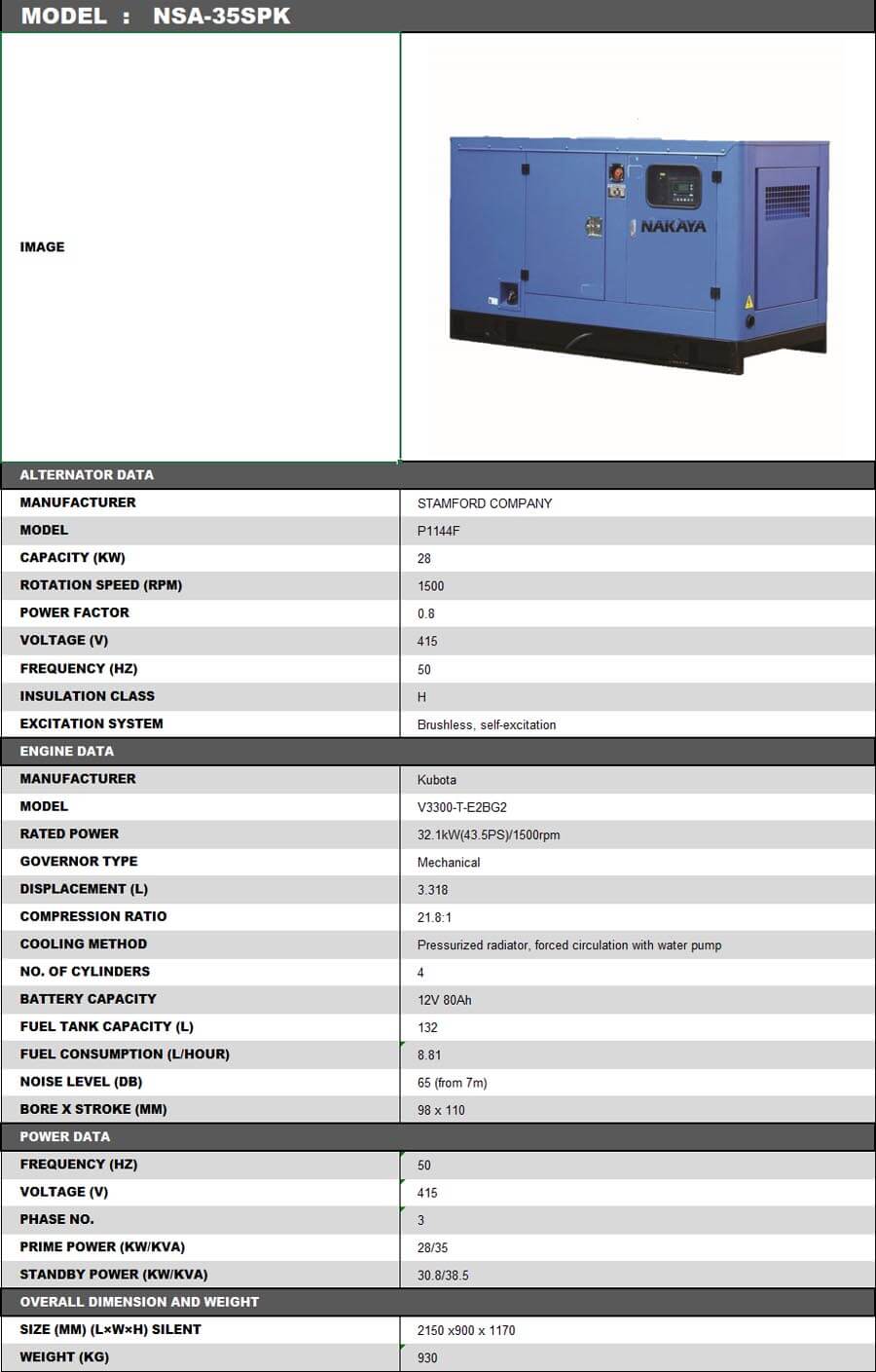

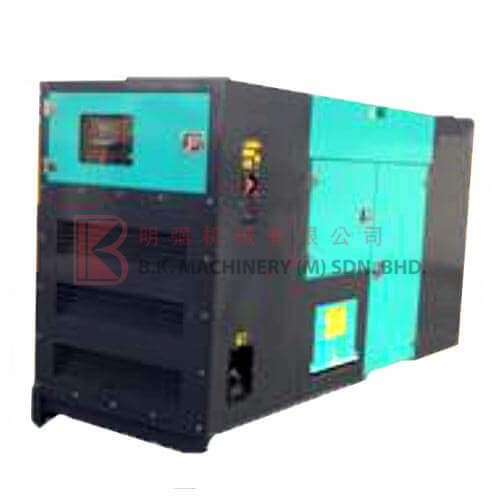

NAKAYA Generator Set – NSA-35SPK

MODEL: NAKAYA NSA-35SPK

ALTERNATOR DATA

• Manufacturer: STAMFORD COMPANY
• Model: P1144F
• Capacity (kW): 28
• Rotation Speed (rpm): 1500
• Power Factor: 0.8
• Voltage (V): 415
• Frequency (Hz): 50
• Insulation Class: H
• Excitation System: Brushless, Self-excitation

ENGINE DATA

• Manufacturer: Kubota
• Model: V3300-T-E2BG2
• Rated Power: 32.1kW(43.5PS)/1500rpm
• Governor Type: Mechanical
• Displacement (L): 3.318
• Compression Ratio: 21.8:1
• Cooling Method: Pressurized radiator, forced circulation with water pump
• No. of Cylinders: 4
• Battery Capacity: 12V 80Ah
• Fuel Tank Capacity (L): 132
• Fuel Consumption (L/Hour): 8.81
• Noise Level (dB): 65 (from 7m)
• Bore x Stroke (mm): 98 x 110

POWER DATA

• Frequency (Hz): 50
• Voltage (V): 415
• Phase No.: 3
• Prime Power (kW/kVA): 28/35
• Standby Power (kW/kVA): 30.8/38.5

OVERALL DIMENSION AND WEIGHT

• Size (mm) (LxWxH) Silent: 2150 x 900 x 1170
• Weight (kg): 930
