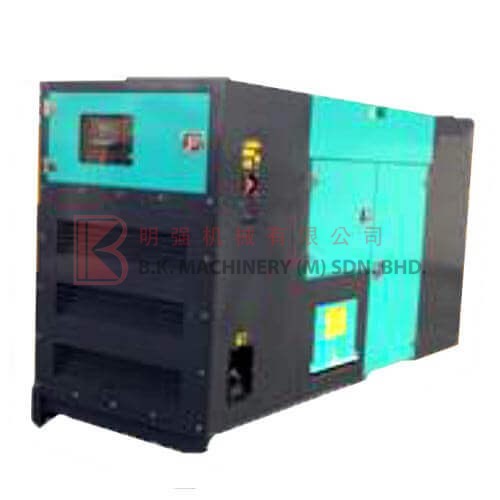

NAKAYA Generator Set – NSA-30SPIC

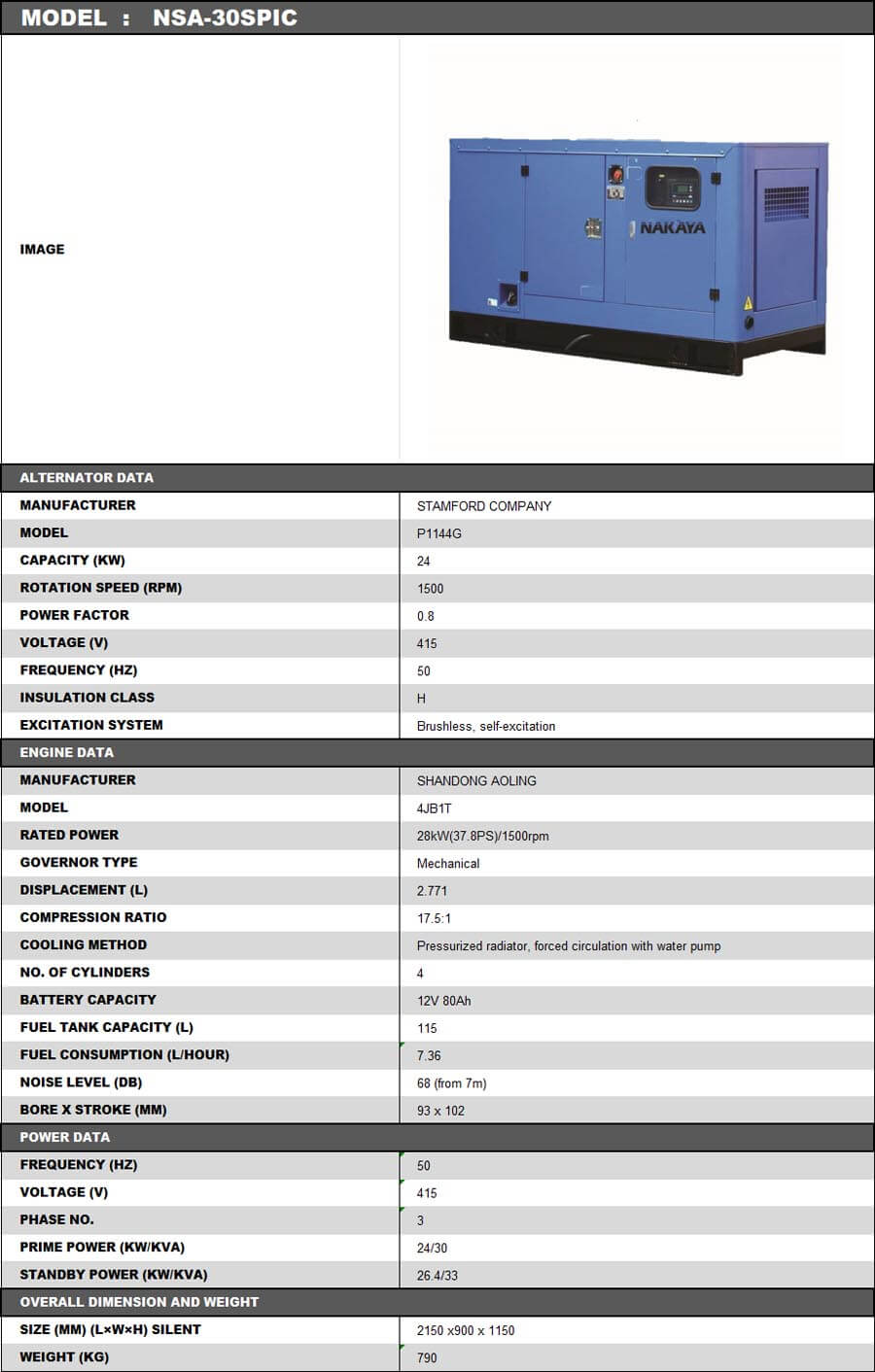

MODEL: NAKAYA NSA-30SPIC

ALTERNATOR DATA

• Manufacturer: STAMFORD COMPANY
• Model: P1144G
• Capacity (kW): 24
• Rotation Speed (rpm): 1500
• Power Factor: 0.8
• Voltage (V): 415
• Frequency (Hz): 50
• Insulation Class: H
• Excitation System: Brushless, Self-excitation

ENGINE DATA

• Manufacturer: SHANDONG AOLING
• Model: 4JB1T
• Rated Power: 28kW(37.8PS)/1500rpm
• Governor Type: Mechanical
• Displacement (L): 2.771
• Compression Ratio: 17.5:1
• Cooling Method: Pressurized radiator, forced circulation with water pump
• No. of Cylinders: 4
• Battery Capacity: 12V 80Ah
• Fuel Tank Capacity (L): 115
• Fuel Consumption (L/Hour): 7.36
• Noise Level (dB): 68 (from 7m)
• Bore x Stroke (mm): 93 x 102

POWER DATA

• Frequency (Hz): 50
• Voltage (V): 415
• Phase No.: 3
• Prime Power (kW/kVA): 24/30
• Standby Power (kW/kVA): 26.4/33

OVERALL DIMENSION AND WEIGHT

• Size (mm) (LxWxH) Silent: 2150 x 900 x 1150
• Weight (kg): 790
