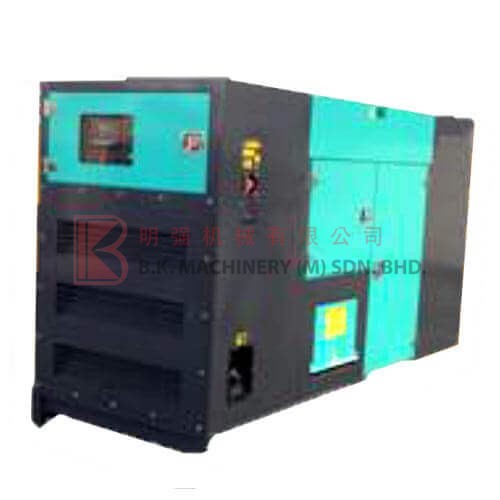

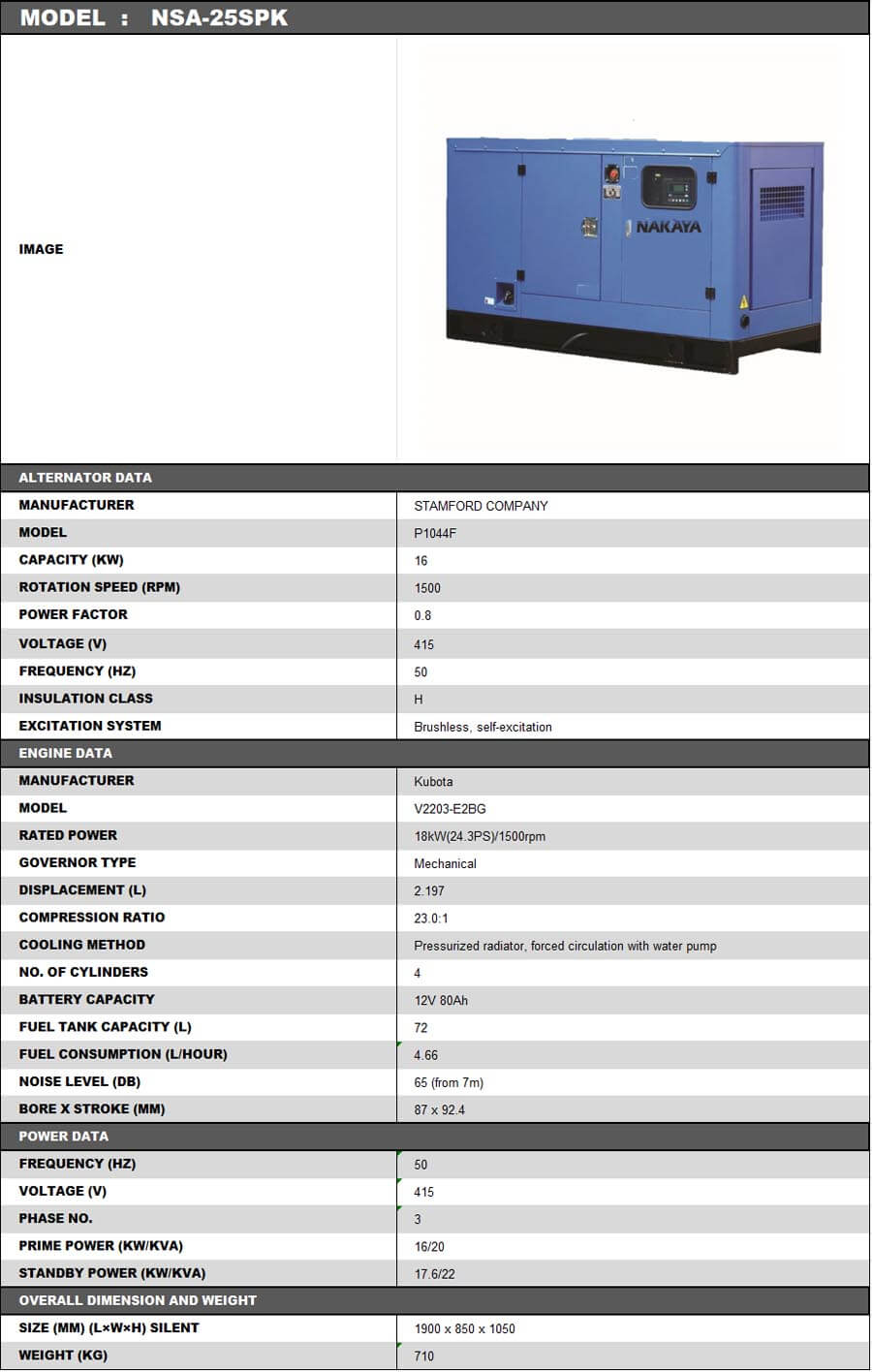

NAKAYA Generator Set – NSA-25SPK

MODEL: NAKAYA NSA-25SPK

ALTERNATOR DATA

• Manufacturer: STAMFORD COMPANY
• Model: P1044F
• Capacity (kW): 16
• Rotation Speed (rpm): 1500
• Power Factor: 0.8
• Voltage (V): 415
• Frequency (Hz): 50
• Insulation Class: H
• Excitation System: Brushless, Self-excitation

ENGINE DATA

• Manufacturer: Kubota
• Model: V2203-E2BG
• Rated Power: 18kW(24.3PS)/1500rpm
• Governor Type: Mechanical
• Displacement (L): 2.197
• Compression Ratio: 23.0:1
• Cooling Method: Pressurized radiator, forced circulation with water pump
• No. of Cylinders: 4
• Battery Capacity: 12V 80Ah
• Fuel Tank Capacity (L): 72
• Fuel Consumption (L/Hour): 4.66
• Noise Level (dB): 65 (from 7m)
• Bore x Stroke (mm): 87 x 92.4

POWER DATA

• Frequency (Hz): 50
• Voltage (V): 415
• Phase No.: 3
• Prime Power (kW/kVA): 16/20
• Standby Power (kW/kVA): 17.6/22

OVERALL DIMENSION AND WEIGHT

• Size (mm) (LxWxH) Silent: 1900 x 850 x 1050
• Weight (kg): 710
