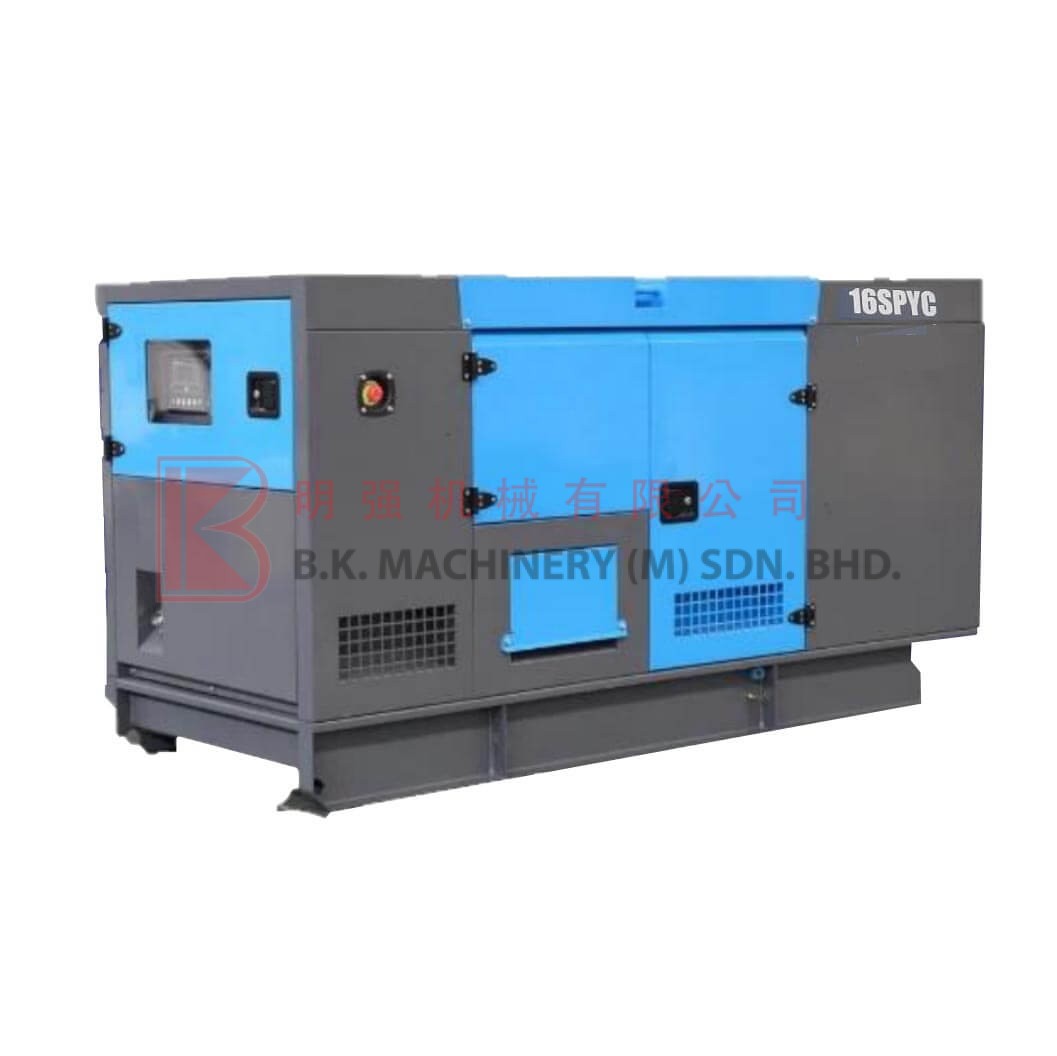

NAKAYA Generator Set – NSA-16SPYC

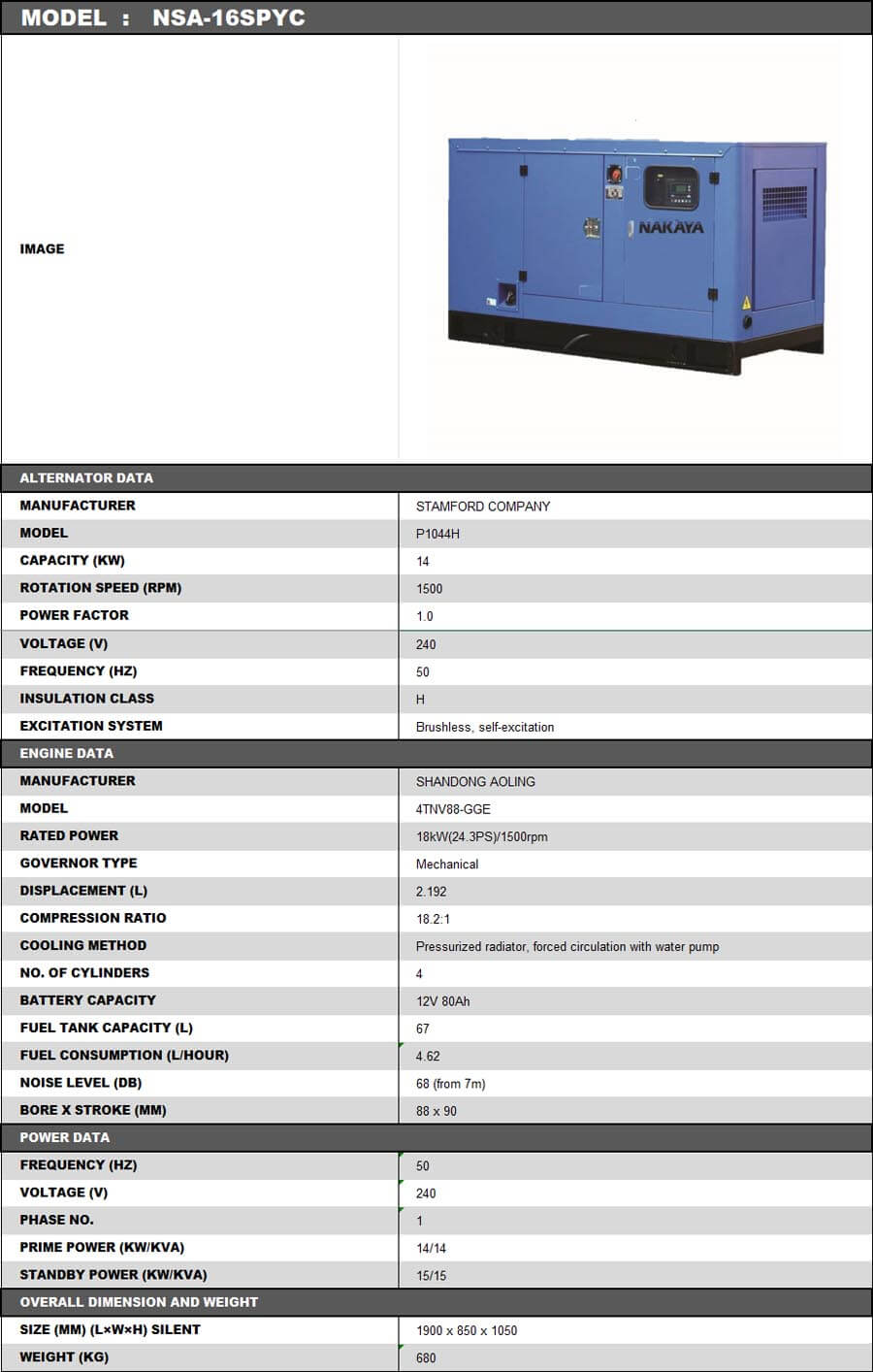

MODEL: NAKAYA NSA-16SPYC

ALTERNATOR DATA

• Manufacturer: STAMFORD COMPANY
• Model: P1044H
• Capacity (kW): 14
• Rotation Speed (rpm): 1500
• Power Factor: 1.0
• Voltage (V): 240
• Frequency (Hz): 50
• Insulation Class: H
• Excitation System: Brushless, Self-excitation

ENGINE DATA

• Manufacturer: SHANDONG AOLING
• Model: 4TNV88-GGE
• Rated Power: 18kW(24.3PS)/1500rpm
• Governor Type: Mechanical
• Displacement (L): 2.192
• Compression Ratio: 18.2:1
• Cooling Method: Pressurized radiator, forced circulation with water pump
• No. of Cylinders: 4
• Battery Capacity: 12V 80Ah
• Fuel Tank Capacity (L): 67
• Fuel Consumption (L/Hour): 4.62
• Noise Level (dB): 68 (from 7m)
• Bore x Stroke (mm): 88 x 90

POWER DATA

• Frequency (Hz): 50
• Voltage (V): 240
• Phase No.: 1
• Prime Power (kW/kVA): 14/14
• Standby Power (kW/kVA): 15/15

OVERALL DIMENSION AND WEIGHT

• Size (mm) (LxWxH) Silent: 1900 x 850 x 1050
• Weight (kg): 680
