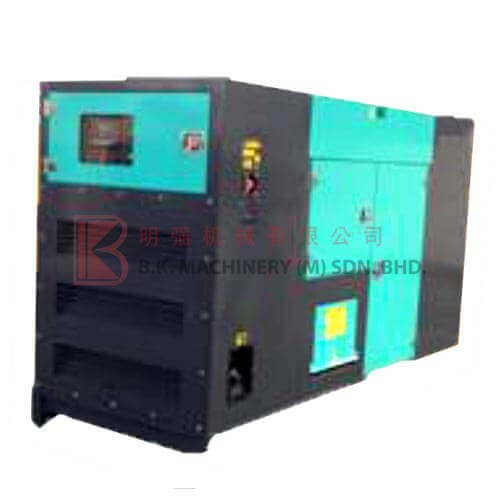

NAKAYA Generator Set – NSA-165SPC

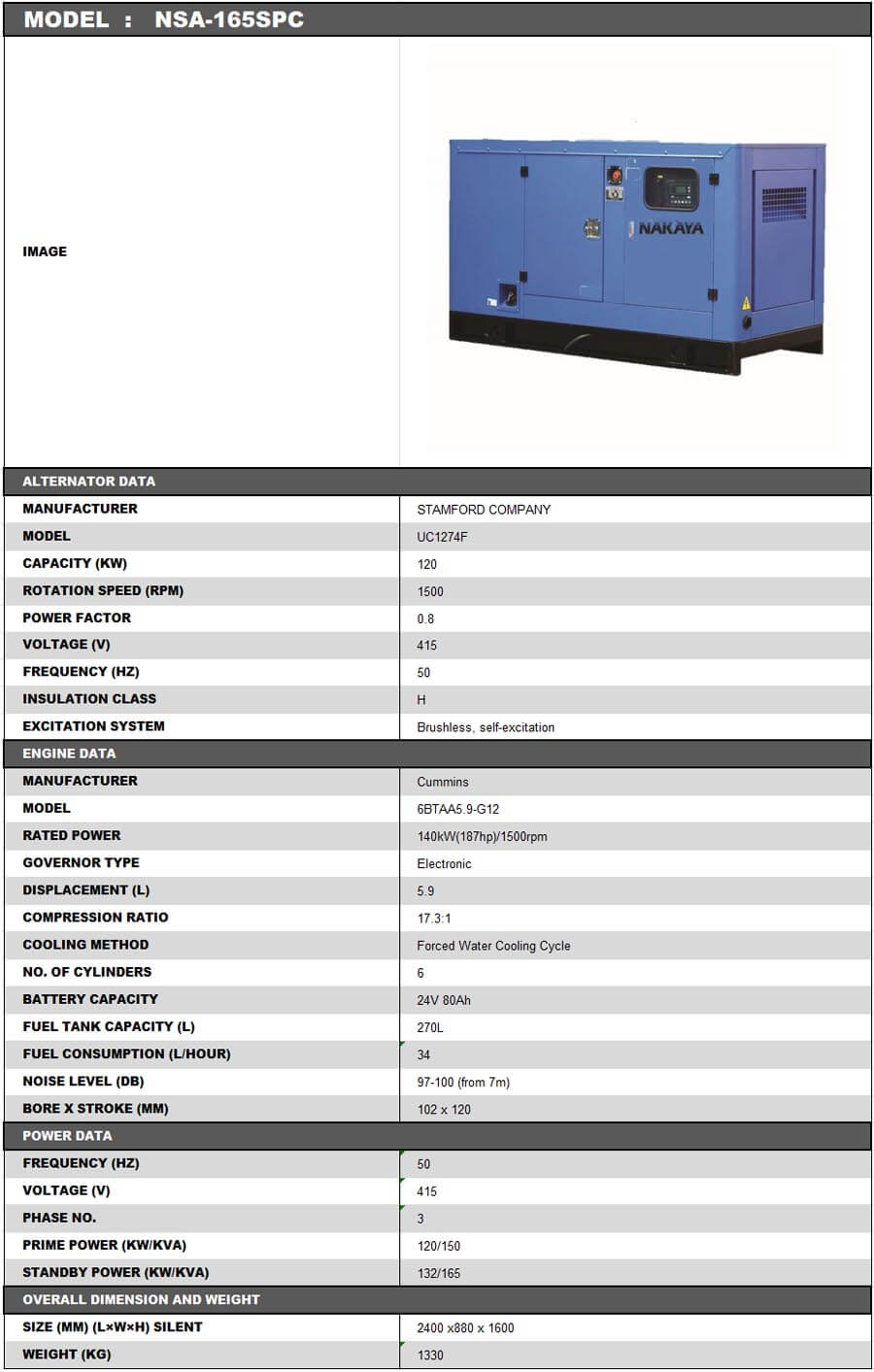

MODEL: NAKAYA NSA-165SPC

ALTERNATOR DATA

• Manufacturer: STAMFORD COMPANY
• Model: UC1274F
• Capacity (kW): 120
• Rotation Speed (rpm): 1500
• Power Factor: 0.8
• Voltage (V): 415
• Frequency (Hz): 50
• Insulation Class: H
• Excitation System: Brushless, Self-excitation

ENGINE DATA

• Manufacturer: Cummins
• Model: 6BTAA5.9-G12
• Rated Power: 140kW(187HP)/1500rpm
• Governor Type: Electronic
• Displacement (L): 5.9
• Compression Ratio: 17.3:1
• Cooling Method: Forced Water Cooling Cycle
• No. of Cylinders: 6
• Battery Capacity: 24V 80Ah
• Fuel Tank Capacity (L): 270L
• Fuel Consumption (L/Hour): 34
• Noise Level (dB): 97-100 (from 7m)
• Bore x Stroke (mm): 102 x 120

POWER DATA

• Frequency (Hz): 50
• Voltage (V): 415
• Phase No.: 3
• Prime Power (kW/kVA): 120/150
• Standby Power (kW/kVA): 132/165

OVERALL DIMENSION AND WEIGHT

• Size (mm) (LxWxH) Silent: 2400 x 880 x 1610
• Weight (kg): 1330
