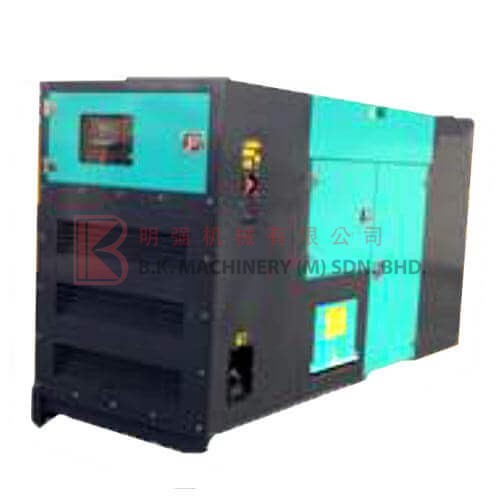

NAKAYA Generator Set – NSA-125SPC

MODEL: NAKAYA NSA-125SPC

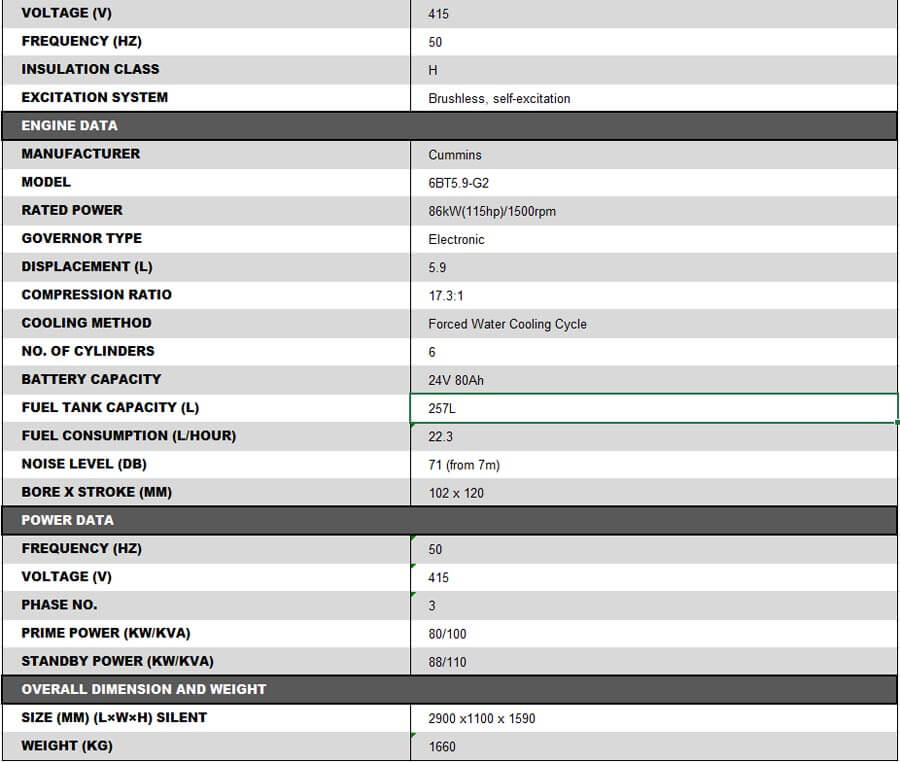

ALTERNATOR DATA

• Voltage (V): 415
• Frequency (Hz): 50
• Insulation Class: H
• Excitation System: Brushless, Self-excitation

ENGINE DATA

• Manufacturer: Cummins
• Model: 6BT5.9-G2
• Rated Power: 86kW(115HP)/1500rpm
• Governor Type: Electronic
• Displacement (L): 5.9
• Compression Ratio: 17.3:1
• Cooling Method: Forced Water Cooling Cycle
• No. of Cylinders: 6
• Battery Capacity: 24V 80Ah
• Fuel Tank Capacity (L): 257L
• Fuel Consumption (L/Hour): 22.3
• Noise Level (dB): 71 (from 7m)
• Bore x Stroke (mm): 102 x 120

POWER DATA

• Frequency (Hz): 50
• Voltage (V): 415
• Phase No.: 3
• Prime Power (kW/kVA): 80/100
• Standby Power (kW/kVA): 88/110

OVERALL DIMENSION AND WEIGHT

• Size (mm) (LxWxH) Silent: 2900 x 1100 x 1590
• Weight (kg): 1660
