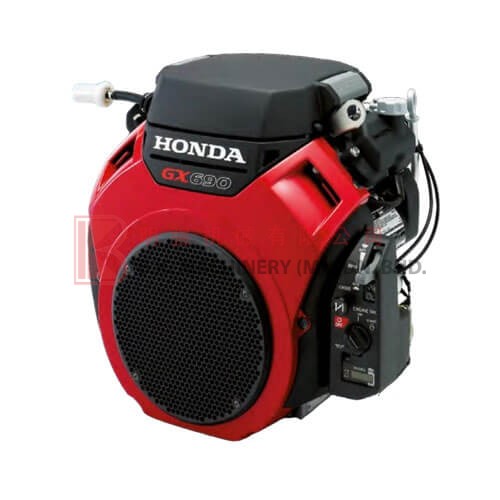

HONDA Generator Set – GX690

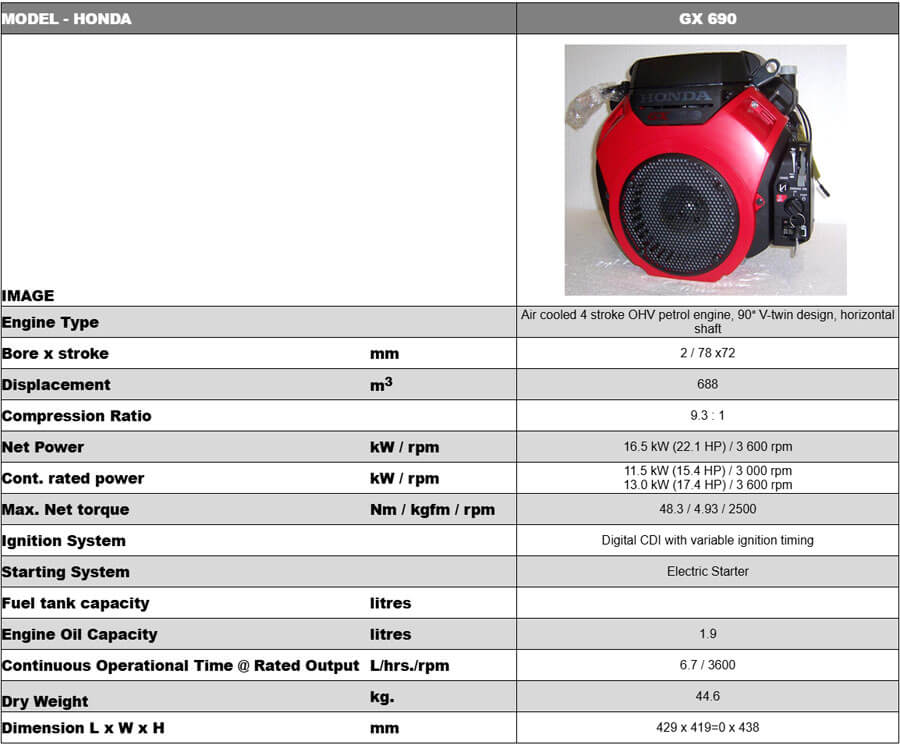

MODEL: HONDA GX690

• Engine Type: Air Cooled 4-stroke OHV Petrol Engine, 90º V-twin Design, Horizontal Shaft
• Bore x Stroke (mm): 2 / 78 x 72
• Displacement (cm³): 688
• Compression Ratio: 9.3 : 1
• Net Power (kW / rpm): 16.5 kW (22.1 HP) / 3600 rpm
• Cont. Rated Power (kW / rpm)
  : 11.5 kW (15.4 HP) / 3000 rpm
  : 13.0 kW (17.4 HP) / 3600 rpm
• Max. Net Torque (Nm / kgfm / rpm): 48.3 / 4.93 / 2500
• Ignition System: Digital CDI With Variable Ignition Timing
• Starting System: Electric Starter
• Fuel Tank Capacity (Litres): –
• Engine Oil Capacity (Litres): 1.9
• Continuous Operational Time @ Rated Output (hrs. / rpm): 6.7 / 3600
• Dry Weight (kg): 44.6
• Dimension (L x W x H) (mm): 429 x 410 x 438
