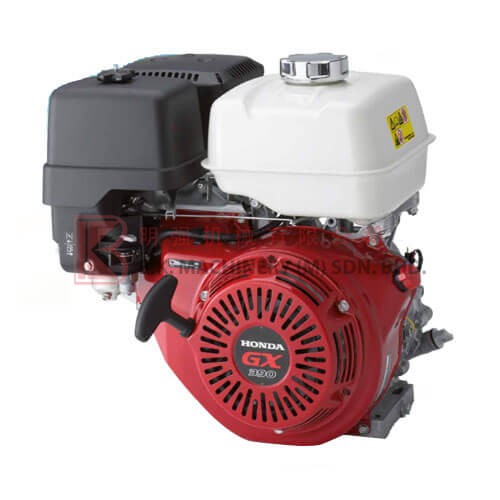

HONDA Generator Set – GX390

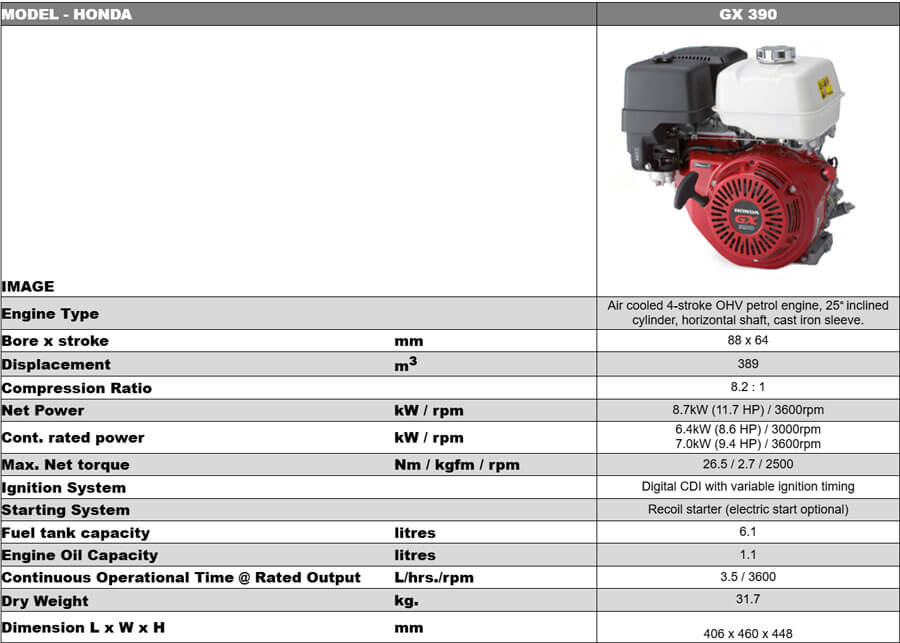

MODEL: HONDA GX390

• Engine Type: Air Cooled 4-stroke OHV Petrol Engine, 25º Inclined Cylinder, Horizontal Shaft, Cast Iron Sleeve
• Bore x Stroke (mm): 88 x 64
• Displacement (cc): 389
• Compression Ratio: 8.2 : 1
• Net Power (kW / rpm): 8.7 kW (11.7 HP) / 3600 rpm
• Cont. Rated Power (kW / rpm)
  : 6.4 kW (8.6 HP) / 3000 rpm
  : 7.0 kW (9.4 HP) / 3600 rpm
• Max. Net Torque (Nm / kgfm / rpm): 26.5 / 2.7 / 2500
• Ignition System: Digital CDI With Variable Ignition Timing
• Starting System: Recoil Starter (Electric Start Optional)
• Fuel Tank Capacity (Litres): 6.1
• Engine Oil Capacity (Litres): 1.1
• Continuous Operational Time @ Rated Output (hrs. / rpm): 3.5 / 3600
• Dry Weight (kg): 31.7
• Dimension (L x W x H) (mm): 406 x 460 x 448
