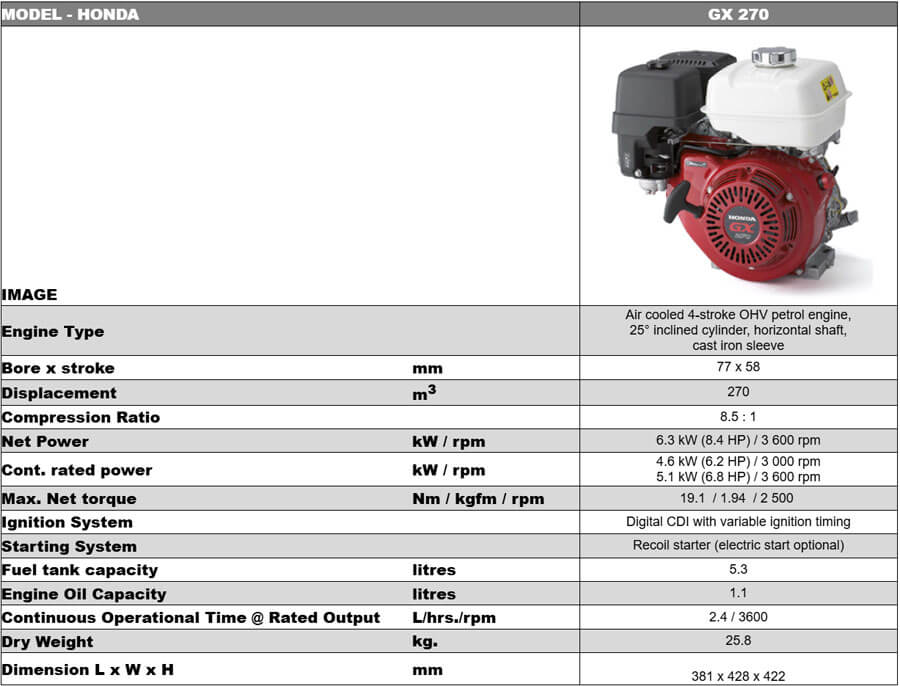

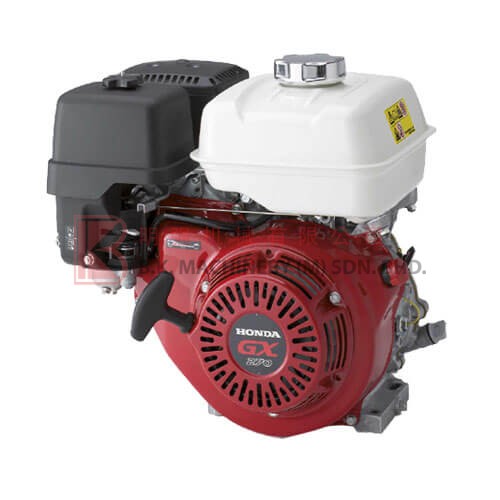

HONDA Generator Set – GX270

MODEL: HONDA GX270

• Engine Type: Air Cooled 4-stroke OHV Petrol Engine, 25º Inclined Cylinder, Horizontal Shaft, Cast Iron Sleeve
• Bore x Stroke (mm): 77 x 58
• Displacement (cc): 270
• Compression Ratio: 8.5 : 1
• Net Power (kW / rpm): 6.3 kW (8.4 HP) / 3600 rpm
• Cont. Rated Power (kW / rpm)
  : 4.6 kW (6.2 HP) / 3000 rpm
  : 5.1 kW (6.8 HP) / 3600 rpm
• Max. Net Torque Nm / kgfm / rpm: 19.1 / 1.94 / 2500
• Ignition System: Digital CDI With Variable Ignition Timing
• Starting System: Recoil Starter (Electric Start Optional)
• Fuel Tank Capacity (Litres): 5.3
• Engine Oil Capacity (Litres): 1.1
• Continuous Operational Time @ Rated Output (hrs. / rpm): 2.4 / 3600
• Dry Weight (kg): 25.8
• Dimension (L x W x H) (mm): 381 x 428 x 422
