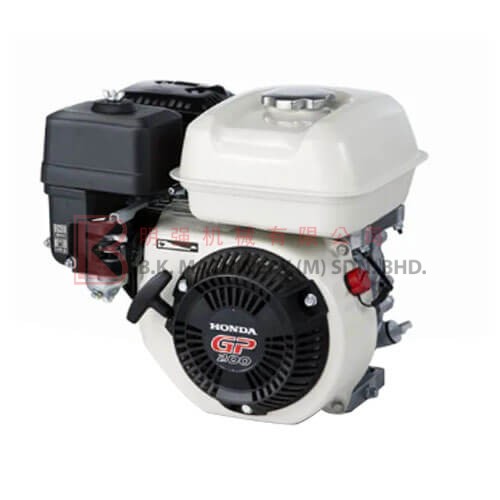

HONDA Generator Set – GP200

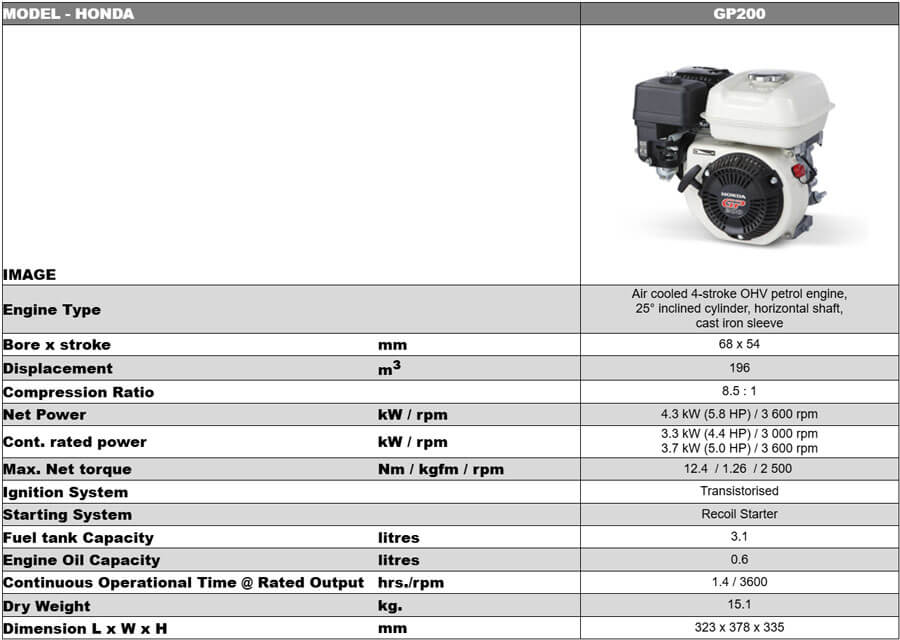

MODEL: HONDA GP200

• Engine Type: Air Cooled 4-stroke OHV Petrol Engine, 25º Inclined Cylinder, Horizontal Shaft, Cast Iron Sleeve
• Bore x Stroke (cc): 68 x 54
• Displacement (cm³): 196
• Compression Ratio: 8.5 : 1
• Net Power (kW / rpm): 4.3 kW (5.8 HP) / 3600 rpm
• Cont. Rated Power (kW / rpm)
  : 3.3 kW (4.4 HP) / 3000 rpm
  : 3.7 kW (5.0 HP) / 3600 rpm
• Max. Net Torque (Nm / kgfm / rpm): 12.4 / 1.26 / 2500
• Ignition System: Transistorised
• Starting System: Recoil Starter
• Fuel Tank Capacity (Litres): 3.1
• Engine Oil Capacity (Litres): 0.6
• Continuous Operational Time @ Rated Output (hrs. / rpm): 1.4 / 3600
• Dry Weight (kg): 15.1
• Dimension (L x W x H) (mm): 323 x 378 x 335
