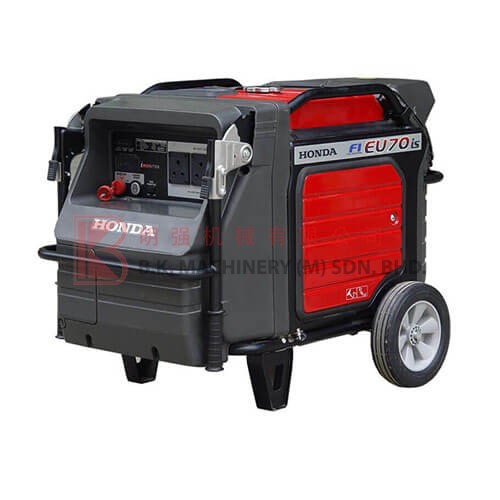

HONDA Generator Set – EU70iS-ITT

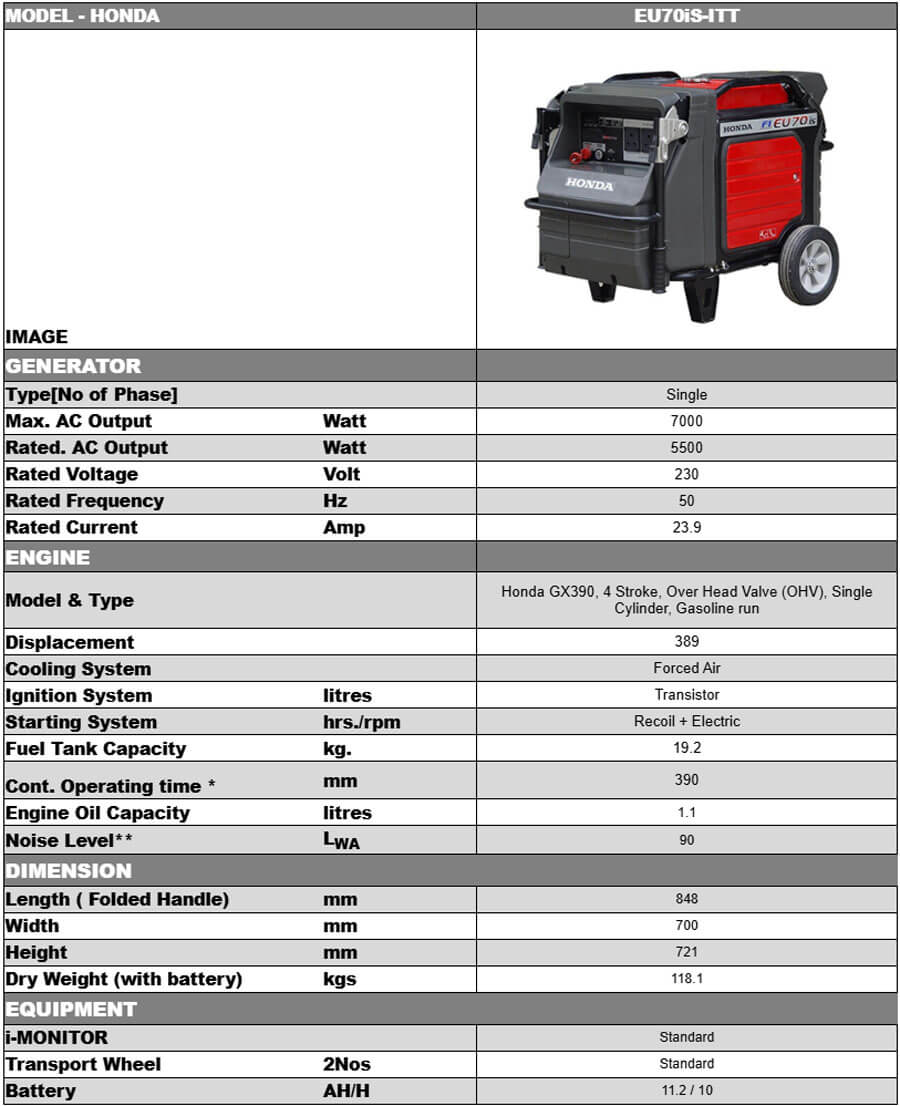

MODEL: HONDA EU70iS-ITT
GENERATOR

• Type (No of Phase): Single
• Max. AC Output (Watt): 7000
• Rated AC (Watt): 5500
• Rated Voltage (Volt): 230
• Rated Frequency (Hz): 50
• Rated Current (Amp): 23.9

ENGINE

• Model & Type: Honda GX390, 4 Stroke, Over Head Valve (OHV), Single Cylinder, Gasoline Run
• Displacement: 389
• Cooling System: Forced Air
• Ignition System (Litres): Transistor
• Starting System (hrs./rpm): Recoil + Electric
• Fuel Tank Capacity (kg): 19.2
• Cont. Operating Time* (mm): 390
• Engine Oil Capacity (Litres): 1.1
• Noise Level ** (LwA): 90

DIMENSION

• Length (Folded Handle) (mm): 848
• Width (mm): 700
• Height (mm): 721
• Dry Weight (With Battery) kg: 118.1

EQUIPMENT

• i-MONITOR: Standard
• Transport Wheel (2Nos): Standard
• Battery (AH/H): 11.2 / 10
