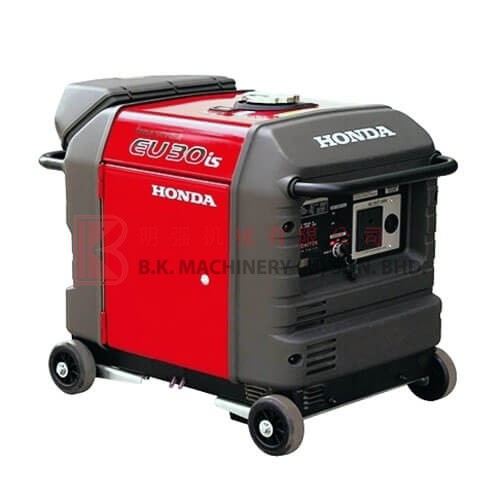

HONDA Generator Set - EU30i-U

HONDA Generator Set – EU30i-U

Categories: , , Brand:

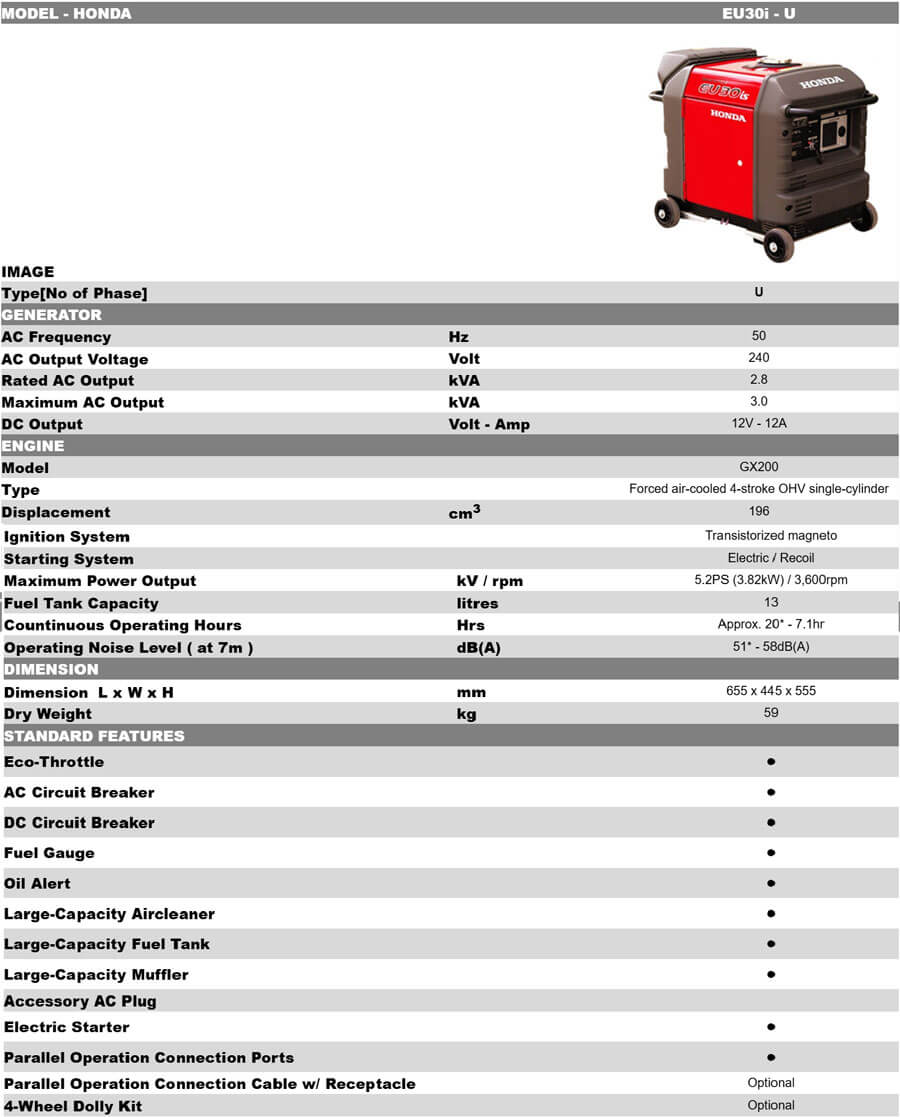

MODEL: HONDA EU30i-U

  • Type (No of Phase): U

GENERATOR

  • AC Frequency (Hz): 50
  • AC Output Voltage (Volt): 240
  • Rated AC Output (kVA): 2.8
  • Maximum AC Output (kVA): 3.0
  • DC Output (Volt – Amp): 12V – 12A

ENGINE

  • Model: GX200
  • Type: Forced air-cooled 4-stroke OHV single-cylinder
  • Displacement (cm³): 196
  • Ignition System: Transistorized Magneto
  • Starting System: Electric / Recoil
  • Maximum Power Output (kV / rpm): 5.2PS (3.82 kW) / 3,600 rpm
  • Fuel Tank Capacity (Litres): 13
  • Continues Operating Hours (Hrs): Approx. 20* – 7.1 hr
  • Operating Noise Level (at 7m) [dB(A)]: 51* – 58 dB(A)

DIMENSION

  • Dimension (L x W x H) (mm): 655 x 445 x 555
  • Dry Weight (kg): 59

Specification

Standard Features

  • Eco-Throttle: •
  • AC Circuit Breaker: •
  • DC Circuit Breaker: •
  • Fuel Gauge: •
  • Oil Alert: •
  • Large-Capacity Air Cleaner: •
  • Large-Capacity Fuel Tank: •
  • Large-Capacity Muffler: •
  • Accessory AC Plug: •
  • Electric Starter: •
  • Parallel Operation Connection Ports: •
  • Parallel Operation Connection Cable w/ Receptacle: Optional
  • 4-Wheel Dolly Kit: Optional
