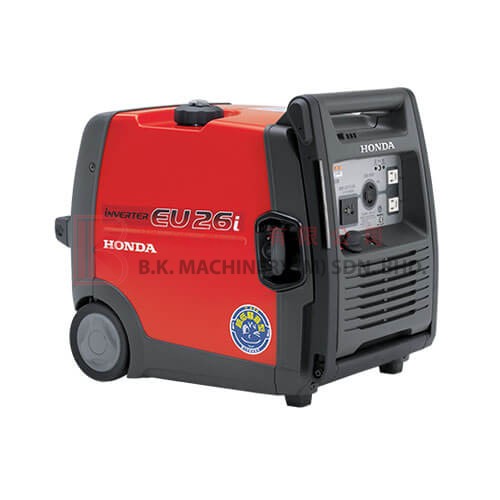

HONDA Generator Set - EU26i-B,F,G

HONDA Generator Set – EU26i-B,F,G

Categories: , , Brand:

MODEL: HONDA EU26i – B,F,G

  • Type (No of Phase): B,F,G

GENERATOR

  • AC Frequency (Hz): 50
  • AC Output Voltage (Volt): 230
  • Rated AC Output (kVA): 2.4
  • Maximum AC Output (kVA): 2.6
  • DC Output (Volt – Amp): 12V – 10A

ENGINE

  • Model: GX160K1
  • Type: Forced Air-cooled 4-stroke OHV single-cylinder
  • Displacement cm³: 163
  • Ignition System: Transistorized magneto
  • Starting System: Recoil
  • Maximum Power Output (kV / rpm): 4.16 ps (3.06 kW) / 3,600 rpm
  • Fuel Tank Capacity (Litres): 13
  • Continuous Operating Hours (Hrs): Approx. 25* – 8.3hr
  • Operating Noise Level (at 7m) [dB(A)]: 51* – 58dB(A)

DIMENSION

  • Dimension (L x W x H) (mm): 655 x 445 x 555
  • Dry Weight (kg): 54

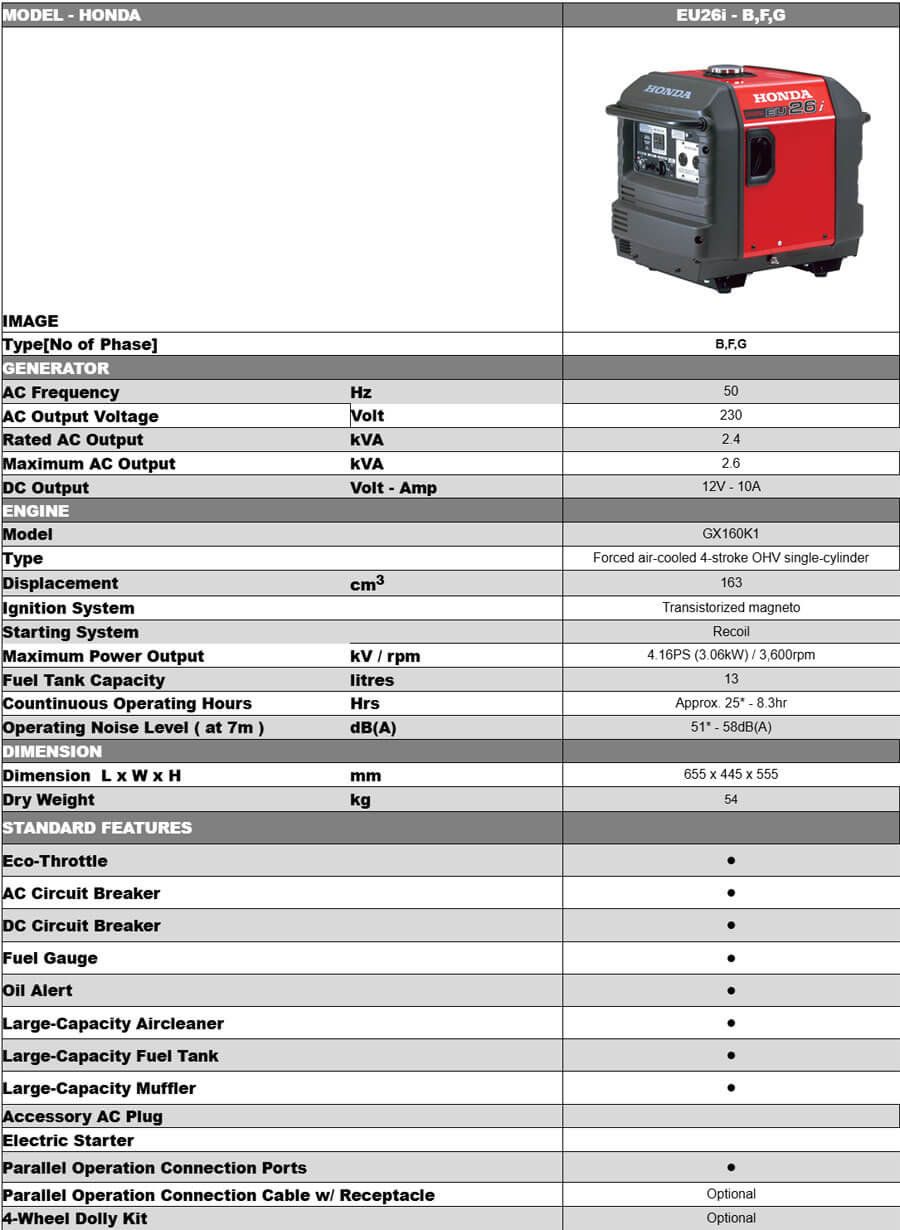

Specification

Standard Features

  • Eco-Throttle: •
  • AC Circuit Breaker: •
  • DC Circuit Breaker: •
  • Fuel Gauge: •
  • Oil Alert: •
  • Large-Capacity Air Cleaner: •
  • Large-Capacity Fuel Tank: •
  • Large-Capacity Muffler: •
  • Accessory AC Plug:
  • Electric Starter:
  • Parallel Operation Connection Ports: •
  • Parallel Operation Connection Cable w / Receptacle: Optional
  • 4-Wheel Dolly Kit: Optional
