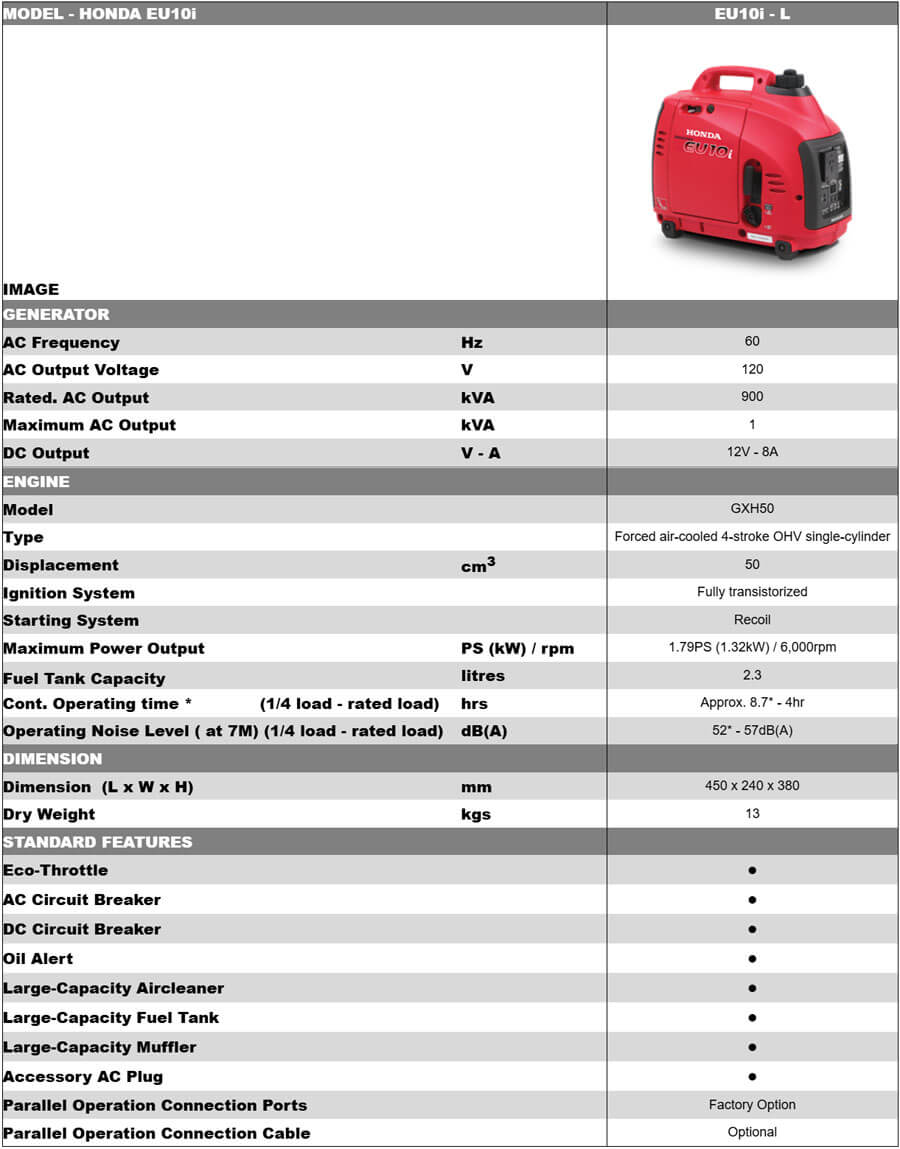

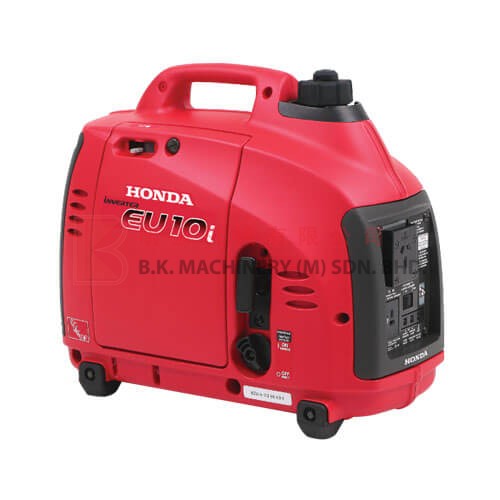

HONDA Generator Set – EU10i – L

MODEL: HONDA EU10i – L
GENERATOR

• AC Frequency (Hz): 60
• AC Output Voltage (V): 120
• Rated. AC Output (kVA): 900
• Maximum AC Output (V – A): 12 V – 8 A

ENGINE

• Model: GXH50
• Type: Forced air-cooled 4-stroke OHV single-cylinder
• Displacement (cm³): 50
• Ignition System: Fully transistorized
• Starting System: Recoil
• Maximum Power Output (PS (kW) / rpm): 1.79 ps (1.32 kW) / 6,000 rpm
• Fuel Tank Capacity (Litres): 2.3
• Cont. Operating Time* (1/4 load – rated load) (hrs): Approx. 8.7* – 4 hr
• Operating Noise Level (at 7M) (1/4 load – rated load) [dB(A)]: 52* – 57 dB(A)

DIMENSION

• Dimension (L x W x H) (mm): 450 x 240 x 380
• Dry (kg): 13
