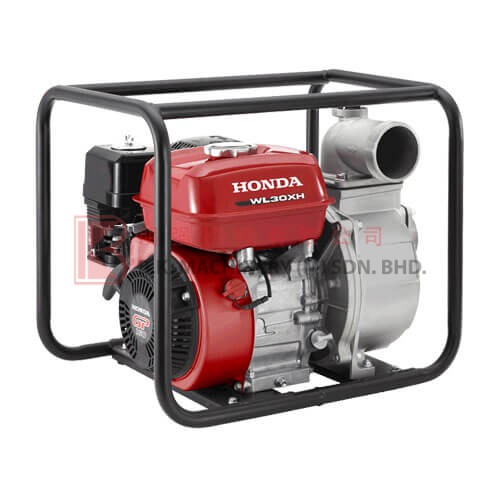

HONDA Centrifugal Water Pump – WL30XH

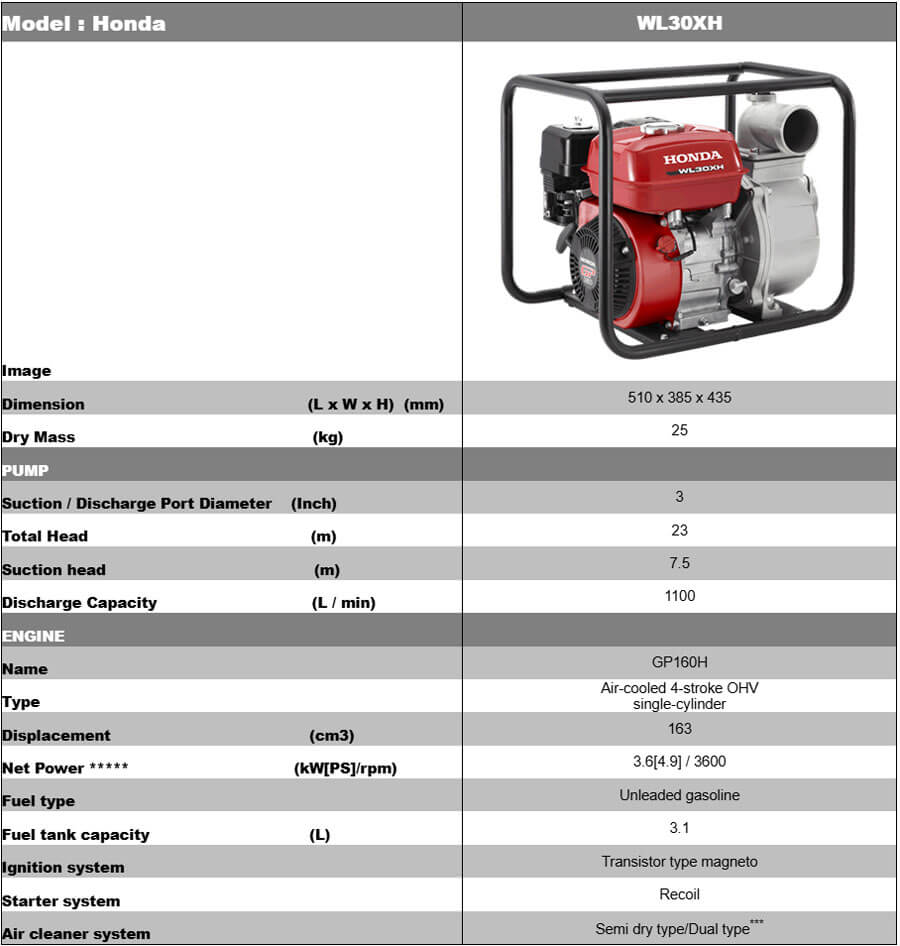

MODEL: HONDA WL30XH

• Dimension (L x W x H) (mm): 510 x 385 x 435
• Dry Mass (kg): 25

PUMP

• Suction / Discharge Port Diameter (inch): 3
• Total Head (m): 23
• Suction Head (m): 7.5
• Discharge Capacity (L/ min): 1100

ENGINE

• Name: GX160H
• Type: Air-cooled 4-stroke OHV Single-cylinder
• Displacement (cm³): 163
• Net Power ***** (kW[PS]/rpm): 3.6[4.9]/ 3600
• Fuel Type: Unleaded Gasoline
• Fuel Tank Capacity (L): 3.1
• Ignition System: Transistor-type Magneto
• Starter System: Recoil
• Air Cleaner System: Semi-dry Type / Dual Type***
