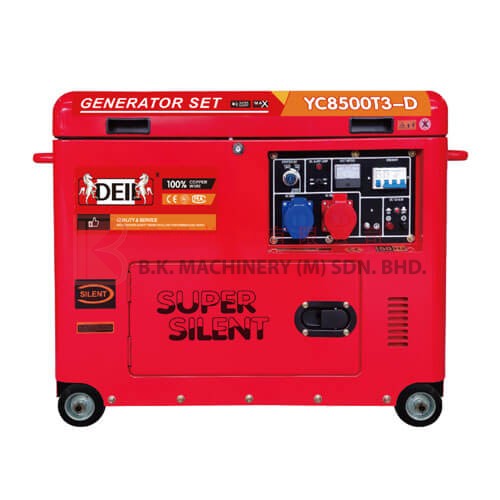

DEIL Generator Set – YC8500T3-D

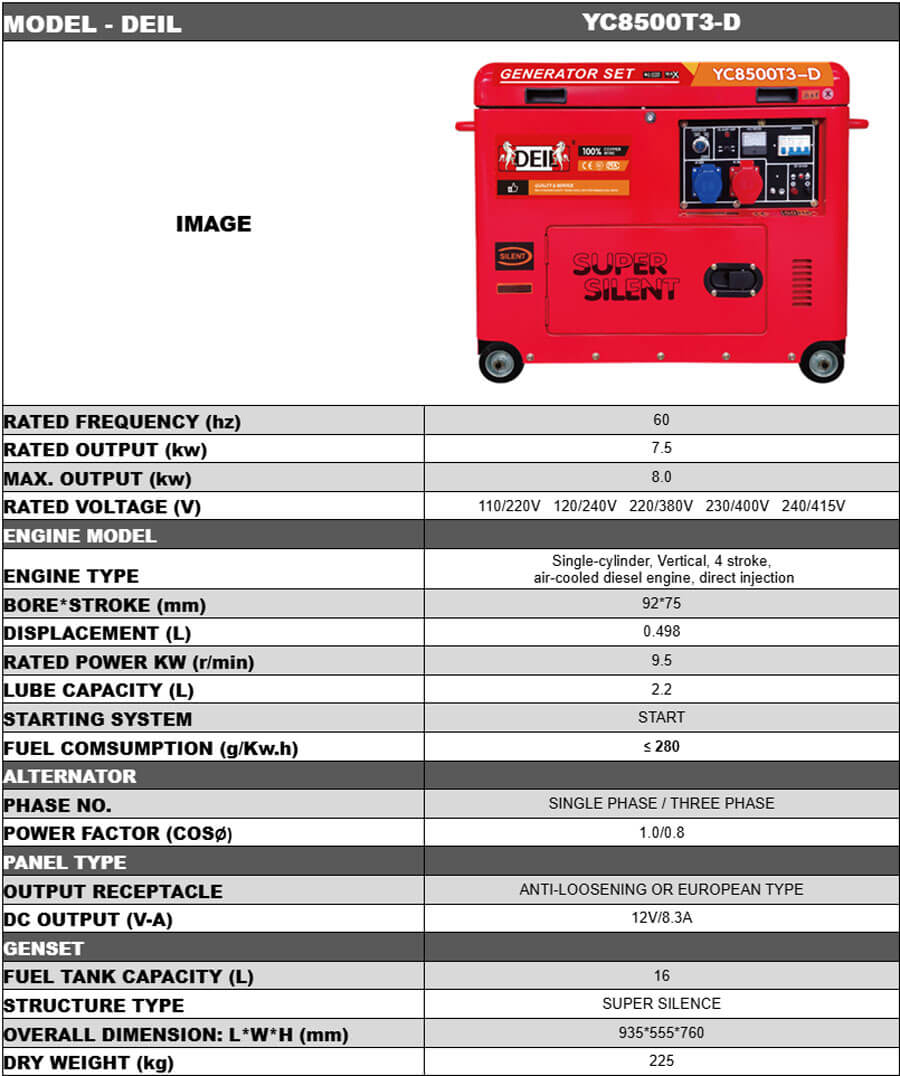

Model: DEIL YC8500T3-D

• Rated Frequency (Hz): 60
• Rated Output (kW): 7.5
• Max. Output (kW): 8.0
• Rated Voltage (V): 110/220V, 120/240V, 220/380V, 230/400V, 240/415V

ENGINE MODEL

• Engine Type: Single-cylinder, Vertical, 4 Stroke, Air-cooled Diesel Engine, Direct Injection
• Bore*Stroke (mm): 92*75
• Displacement (L): 0.498
• Rated Power kW (r/min): 9.5
• Lube Capacity (L): 2.2
• Starting System: START
• Fuel Consumption (g/kWh): ≤ 280

ALTERNATOR

• PHASE NO.: Single Phase / Three Phase
• Power Factor (COSø): 1.0/0.8

PANEL TYPE

• Output Receptacle: Anti-Loosening Or European Type
• DC Output (V-A): 12 V/ 8.3 A

GENSET

• Fuel Tank Capacity (L): 16
• Structure Type: Super Silence
• Overall Dimension (L x W x H) (mm): 935 x 555 x 760
• Dry Weight (kg): 225
