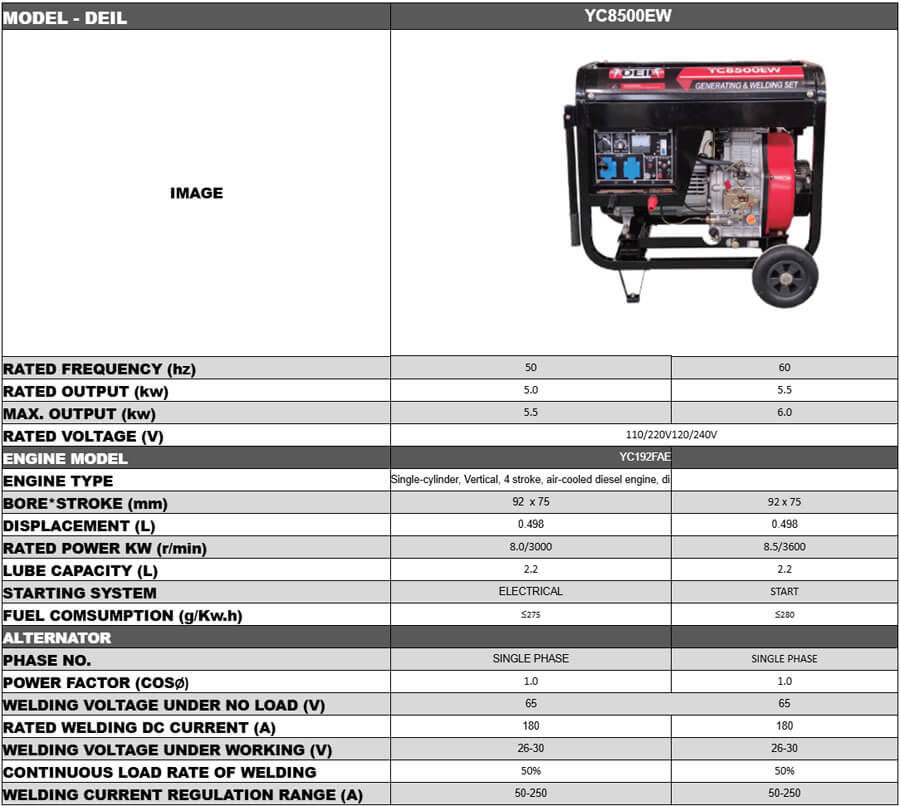

Specification

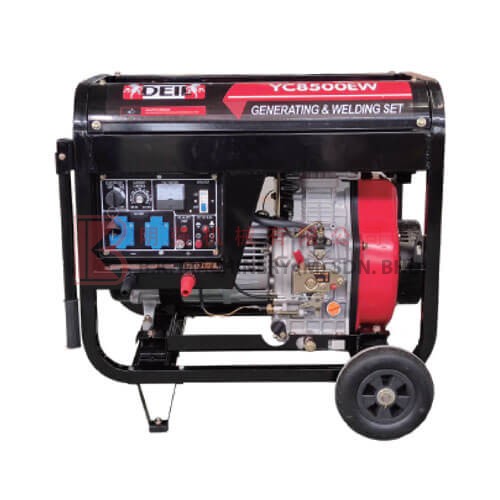

DEIL Generator Set – YC8500EW
MODEL: DEIL YC8500EW
- Rated Frequency (Hz): 50
- Rated Output (kW): 5.0
- Max. Output (kW): 5.5
- Rated Voltage (V): 110/220V, 120/240V
ENGINE MODEL: YC192FAE
- Engine Type: Single-cylinder, Vertical, 4 Stroke, Air-Cooled Diesel Engine, Direct Injection
- Bore * Stroke (mm): 92*75
- Displacement (L): 0.498
- Rated Power (kW) (r/min): 8.0/3000
- Lube Capacity (L): 2.2
- Starting System: Electrical
- Fuel Consumption (g/kWh): ≤ 275
ALTERNATOR
- PHASE NO.: Single Phase
- Power Factor (COSø): 1.0
- Welding Voltage Under No Load (V): 65
- Rated Welding DC Current Working (V): 26-30
- Continuous Load Rate Of Welding: 50%
- Welding Current Regulation Range (A): 50 – 250
MODEL: DEIL YC 8500EW 60hz
MODEL: DEIL YC8500EW
- Rated Frequency (Hz): 60
- Rated Output (kW): 5.5
- Max. Output (kW): 6.0
- Rated Voltage (V): 110/220V, 120/240V
ENGINE MODEL: YC192FAE
- Engine Type: Single-cylinder, Vertical, 4 Stroke, Air-Cooled Diesel Engine, Direct Injection
- Bore * Stroke (mm): 92*75
- Displacement (L): 0.498
- Rated Power (kW) (r/min): 8.5/3600
- Lube Capacity (L): 2.2
- Starting System: Start
- Fuel Consumption (g/kWh): ≤ 280
ALTERNATOR
- PHASE NO.: Single Phase
- Power Factor (COSø): 1.0
- Welding Voltage Under No Load (V): 65
- Rated Welding DC Current Working (V): 26-30
- Continuous Load Rate Of Welding: 50%
- Welding Current Regulation Range (A): 50 – 250
