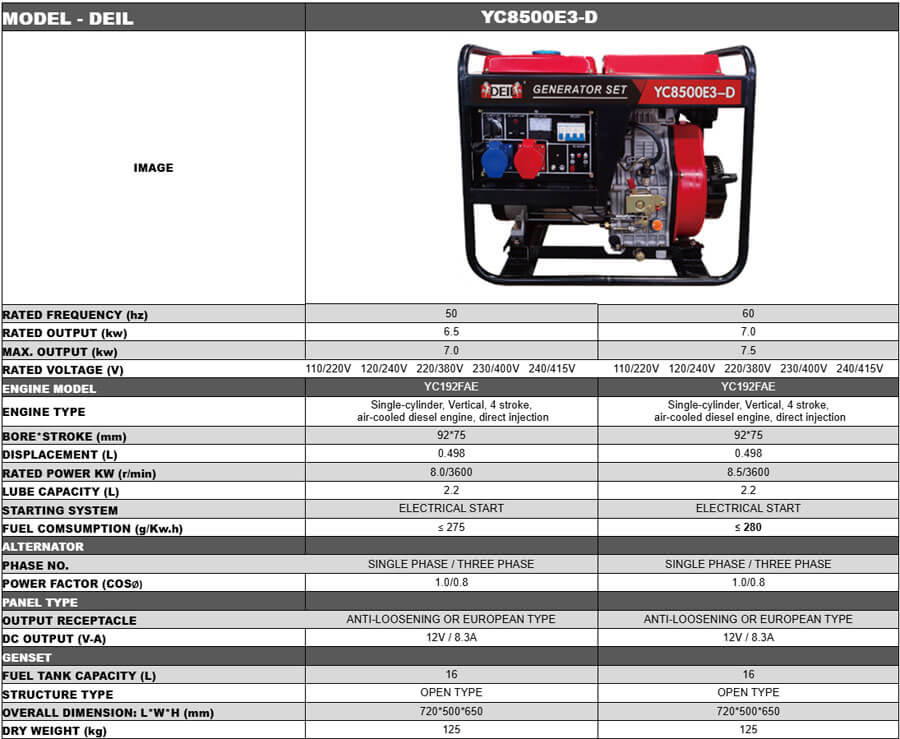

Specification

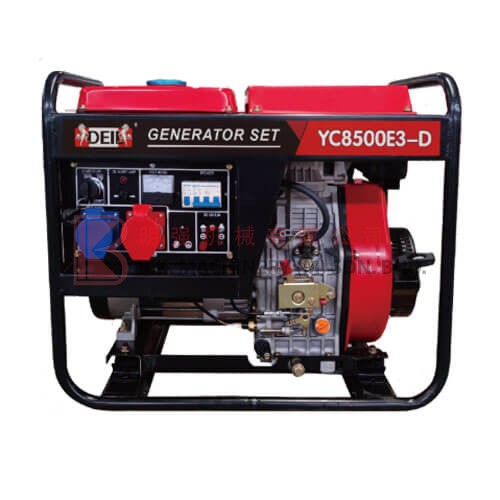

DEIL Generator Set – YC8500E3-D
MODEL: DEIL YC8500E3-D
- Rated Frequency (Hz): 50
- Rated Output (kW): 6.5
- Max. Output (kW): 7.0
- Rated Voltage (V): 110/220V, 120/240V, 220/380V, 230/400V, 240/415V
- Engine Model: YC192FAE
- Engine Type: Single-cylinder, Vertical, 4 Stroke, Air-Cooled Diesel Engine, Direct Injection
- Bore* Stroke (mm): 92*75
- Displacement (L): 8.0/3600
- Lube Capacity (L): 2.2
- Starting System: Electrical Start
- Fuel Consumption (g/kWh): ≤ 275
ALTERNATOR
- PHASE NO.: Single Phase / Three Phase
- Power Factor (COSø): 1.0/0.8
PANEL TYPE
- Output Receptacle: Anti-Loosening Or European Type
- DC Output (V-A): 12 V/ 8.3 A
GENSET
- Fuel Tank Capacity (L): 16
- Structure Type: Open Type
- Overall Dimension (L x W x H) (mm): 720 x 500 x 650
- Dry Weight (kg): 125
MODEL: DEIL YC8500E3-D 60hz
MODEL: DEIL YC8500E3-D
- Rated Frequency (Hz): 60
- Rated Output (kW): 7.0
- Max. Output (kW): 7.5
- Rated Voltage (V): 110/220V, 120/240V, 220/380V, 230/400V, 240/415V
- Engine Model: YC192FAE
- Engine Type: Single-cylinder, Vertical, 4 Stroke, Air-Cooled Diesel Engine, Direct Injection
- Bore* Stroke (mm): 92*75
- Displacement (L): 8.5/3600
- Lube Capacity (L): 2.2
- Starting System: Electrical Start
- Fuel Consumption (g/kWh): ≤ 280
ALTERNATOR
- PHASE NO.: Single Phase / Three Phase
- Power Factor (COSø): 1.0/0.8
PANEL TYPE
- Output Receptacle: Anti-Loosening Or European Type
- DC Output (V-A): 12 V/ 8.3 A
GENSET
- Fuel Tank Capacity (L): 16
- Structure Type: Open Type
- Overall Dimension (L x W x H) (mm): 720 x 500 x 650
- Dry Weight (kg): 125
