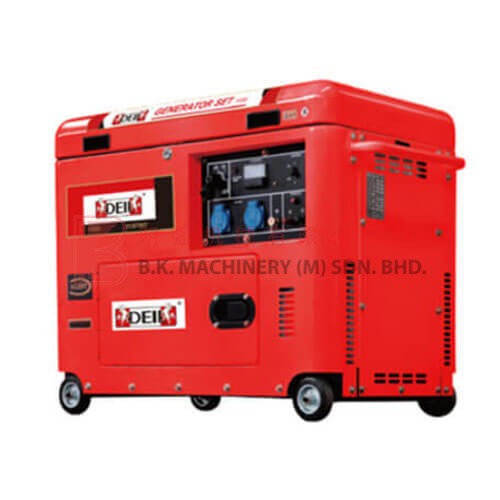

DEIL Generator Set – YC6700T

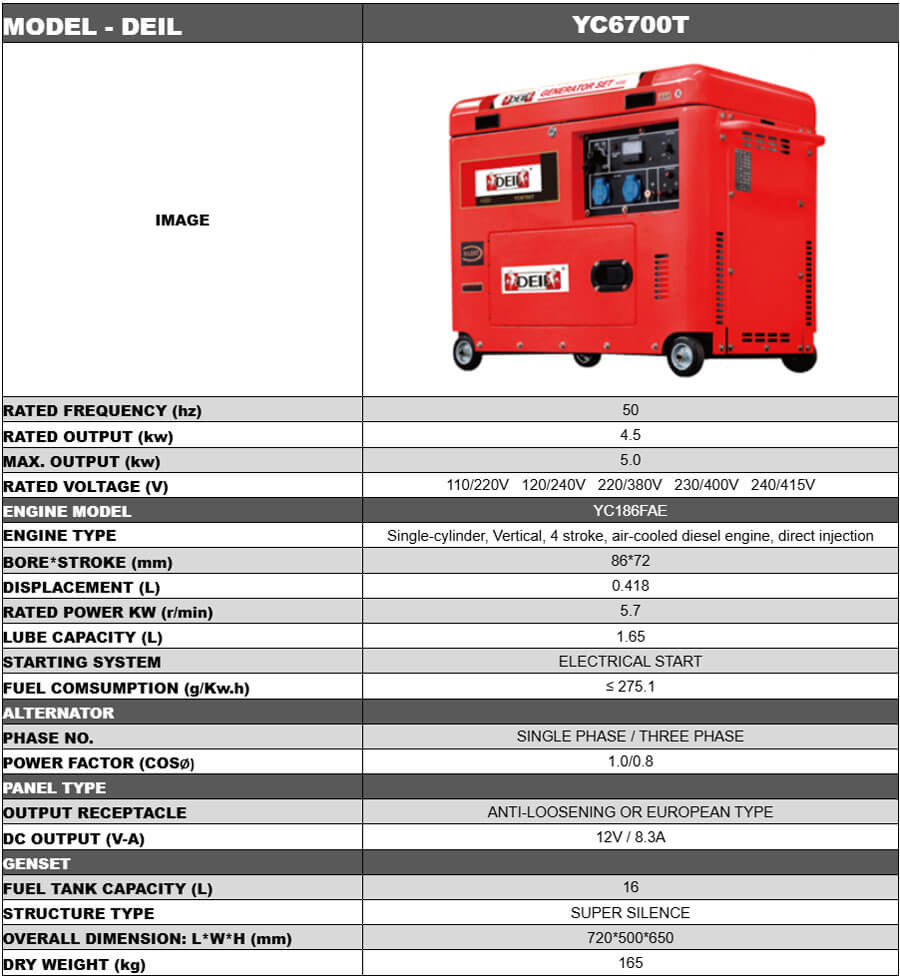

MODEL: DEIL YC6700T

• Rated Frequency (hz): 50
• Rated Output (kW): 4.5
• Max. Output (kW): 5.0
• Rated Voltage (V): 110/220V, 120/240V, 220/380V, 230/400V, 240/415V

ENGINE MODEL: YC186FAE

• Engine Type: Single-cylinder, Vertical, 4 Stroke, Air-cooled Diesel Engine, Direct Injection
• Bore * Stroke (mm): 86*72
• Displacement (L): 0.418
• Rated Power kW (r/min): 5.7
• Lube Capacity (L): 1.65
• Starting System: Electrical Start
• Fuel Consumption (g/kWh): ≤ 275.1

ALTERNATOR

• Phase No.: Single Phase / Three Phase
• Power Factor (COSø): 1.0/0.8

PANEL TYPE

• Output Receptacle: Anti-Loosening Or European Type
• DC Output (V-A): 12 V / 8.3 A

GENSET

• Fuel Tank Capacity (L): 16
• Structure Type: Super Silence
• Overall Dimension (L x W x H) (mm): 720 x 500 x 650
• Dry Weight (kg): 165
