Specification

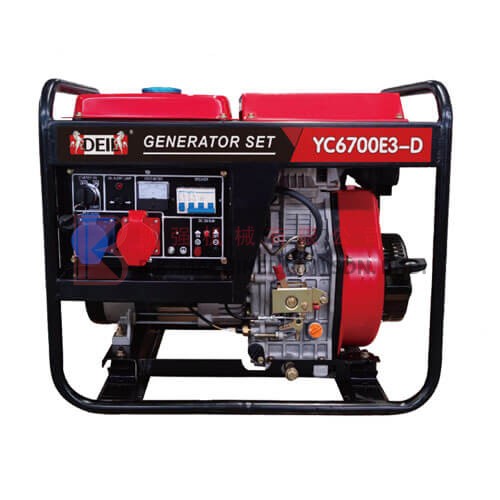

DEIL Generator Set – YC6700E3-D
MODEL: DEIL YC6700E3-D
- Rated Frequency (hz): 50
- Rated Output: (kW): 4.5
- Max. Output (kW): 5.0
- Rated Voltage (V): 110/220V, 120/240V, 220/380V, 230/400V, 240/415V
ENGINE MODEL: YC186FAE
- Engine Type: Single-cylinder, Vertical, 4 Stroke, Air-cooled Diesel Engine, Direct Injection
- Bore * Stroke (mm): 86*72
- Displacement (L): 0.418
- Rated Power (kW) (r/min): 5.7/3000
- Lube Capacity (L): 1.65
- Starting System: Electrical Start
- Fuel Consumption (g/kW.h): ≤ 275.1
ALTERNATOR
- Phase No. Single Phase / Three Phase
- Power Factor (COSø): 1.0/0.8
PANEL TYPE
- Output Receptacle: Anti-Loosening Or European Type
- DC Output (V-A): 12 V/8.3 A
GENSET
- Fuel Tank Capacity (L): 16
- Structure Type: Open Type
- Overall Dimension (L x W x H) (mm): 720 x 500 x 650
- Dry Weight (kg): 105

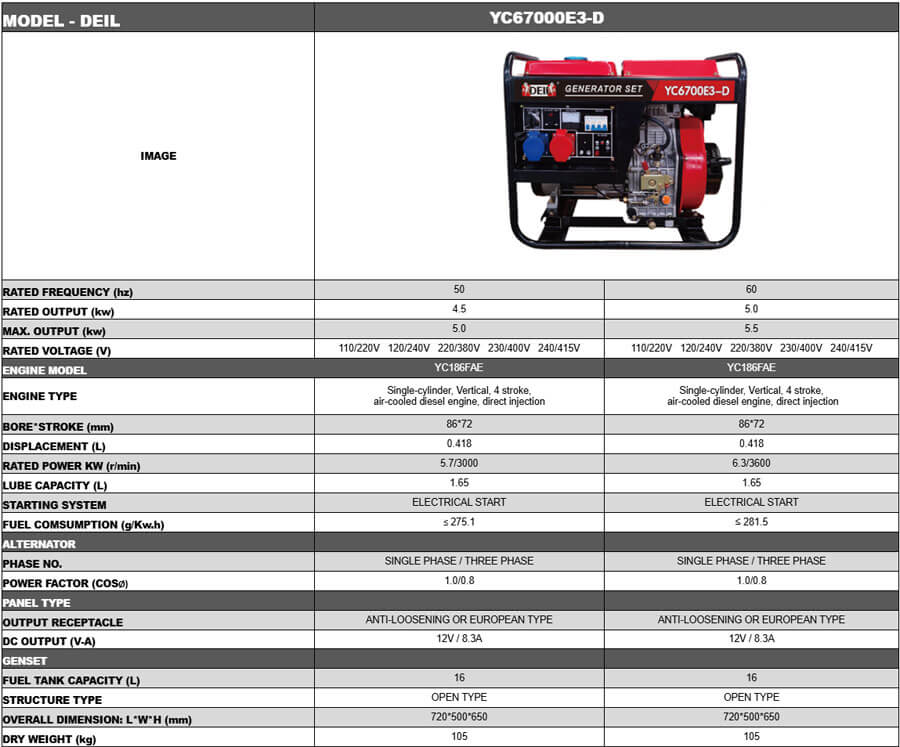

DEIL - YC67000E3-D 60hz
MODEL: DEIL YC6700E3-D
- Rated Frequency (hz): 60
- Rated Output: (kW): 5.0
- Max. Output (kW): 5.5
- Rated Voltage (V): 110/220V, 120/240V, 220/380V, 230/400V, 240/415V
ENGINE MODEL: YC186FAE
- Engine Type: Single-cylinder, Vertical, 4 Stroke, Air-cooled Diesel Engine, Direct Injection
- Bore * Stroke (mm): 86*72
- Displacement (L): 0.418
- Rated Power (kW) (r/min): 6.3/3600
- Lube Capacity (L): 1.65
- Starting System: Electrical Start
- Fuel Consumption (g/kW.h): ≤ 281.15
ALTERNATOR
- Phase No. Single Phase / Three Phase
- Power Factor (COSø): 1.0/0.8
PANEL TYPE
- Output Receptacle: Anti-Loosening Or European Type
- DC Output (V-A): 12 V/8.3 A
GENSET
- Fuel Tank Capacity (L): 16
- Structure Type: Open Type
- Overall Dimension (L x W x H) (mm): 720 x 500 x 650
- Dry Weight (kg): 105
