DEIL Generator Set – DLDE-192FAE

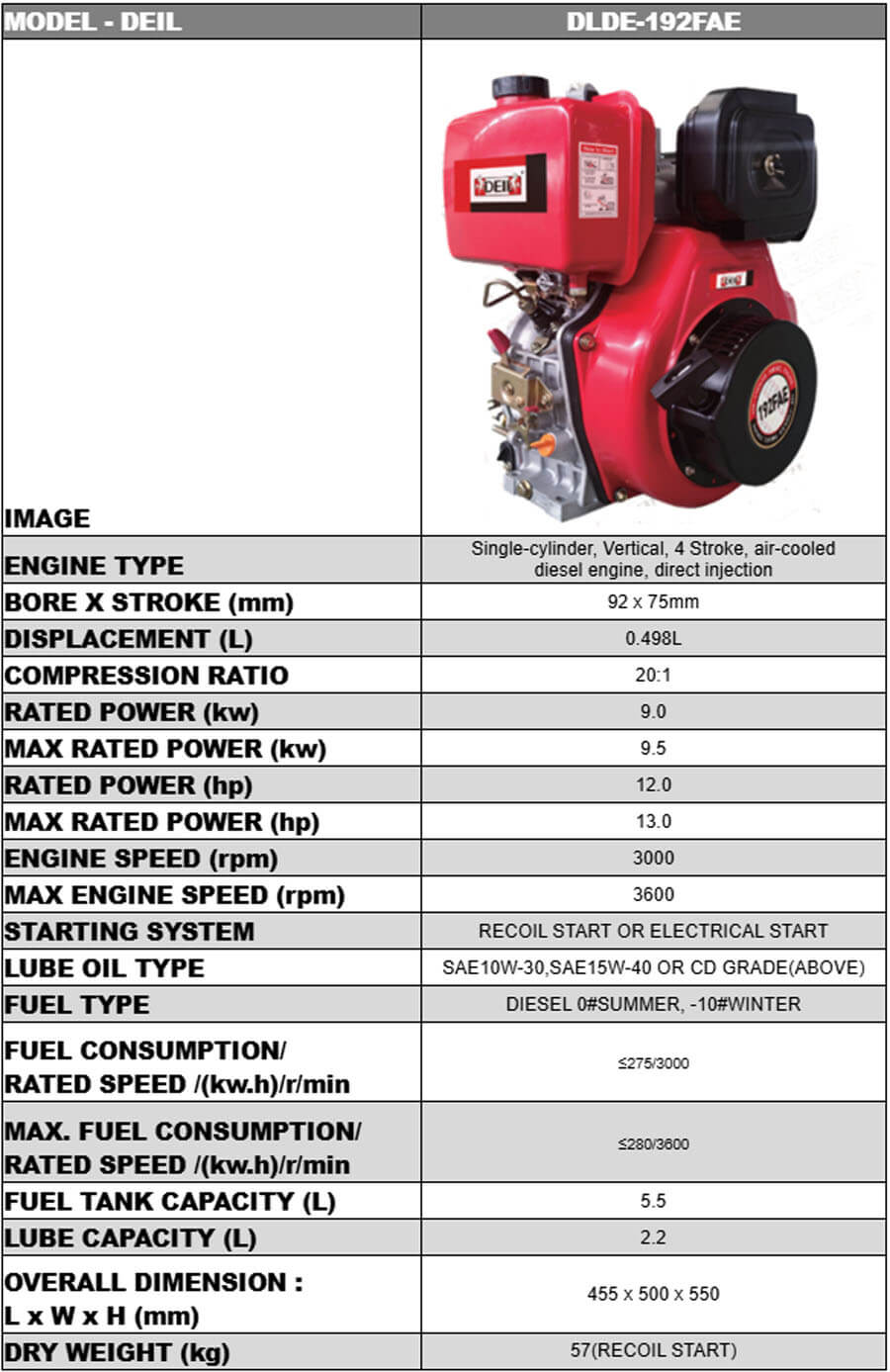

MODEL: DEIL DLDE-192FAE

• Engine Type: Single-cylinder, Vertical, 4 Stroke, air-cooled diesel engine, direct injection
• Bore X Stroke (mm): 92 x 75mm
• Displacement (L): 0.498L
• Compression Ratio: 20:1
• Rated Power (kW): 9.0
• Max Rated Power (kW): 9.5
• Rated Power (hp): 12.0
• Max Rated Power (hp): 13.0
• Engine Speed (rpm): 3000
• Max Engine Speed (rpm): 3600
• Starting System: Recoil Start or Electrical Start
• Lube Oil Type: SAE10W-30, SAE15W-40 or CD GRADE (ABOVE)
• Fuel Type: Diesel 0#SUMMER, -10#Winter
• Fuel Consumption / Rated Speed / (kW.h)/(r/min): ≤275/3000
• Max. Fuel Consumption / Rated Speed / (kW.h)/(r/min): ≤280/3600
• Fuel Tank Capacity (L): 5.5
• Lube Capacity (L): 2.2
• Overall Dimension (L x W x H) (mm): 455 x 500 x 550
• Dry Weight (kg): 57(RECOIL START)
