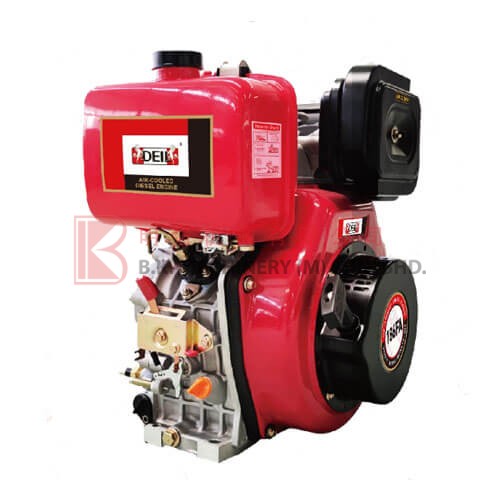

DEIL Generator Set – DLDE-186FA(E)

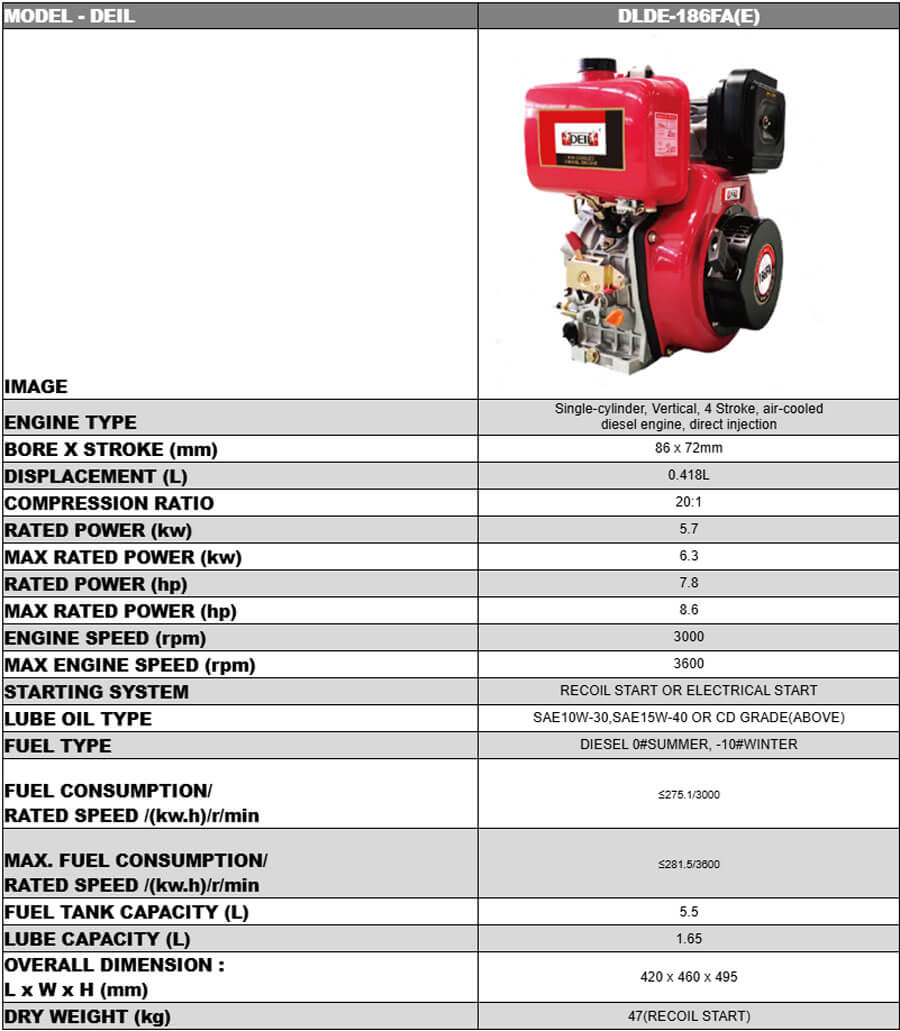

MODEL: DEIL DLDE-186FA(E)

• Engine Type: Single Cylinder, Vertical 4-Stroke, Air-cooled Diesel Engine, Direct Injection
• Bore X Stroke (mm): 86 x 72 mm
• Displacement (L): 0.418 L
• Compression Ratio: 20:1
• Rated Power (kW): 5.7
• Max Rated Power (kW): 6.3
• Rated Power (hp): 7.8
• Max Rated Power (hp): 8.6
• Engine Speed (rpm): 3000
• Max Engine Speed (rpm): 3600
• Starting System: Recoil Start Or Electrical Start
• Lube Oil Type: SAE10W-30, SAE15-W-40 or CD Grade (Above)
• Fuel Type: Diesel 0#SUMMER, -10#WINTER
• Fuel Consumption / Rated Speed / (kW.h)/r/rim: ≤ 275.1/3000
• Max. Fuel Consumption / Rated Speed / (kW.h)/r/rim: ≤ 281.5/3600
• Fuel Tank Capacity (L): 5.5
• Lube Capacity (L): 1.65
• Overall Dimension (L x W x H) (mm): 420 x 460 x 495
• Dry Weight (kg): 47 (RECOIL START)
