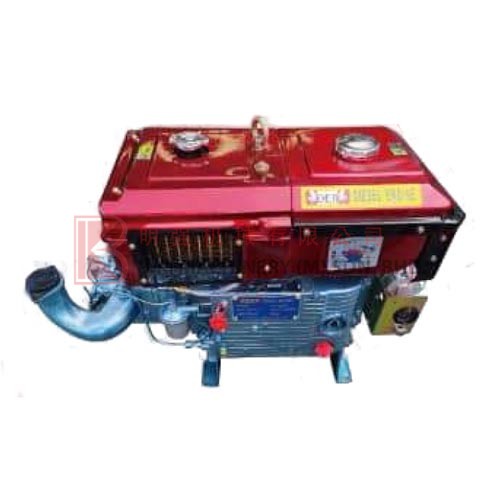

DEIL Diesel Engine – ZS1135ND

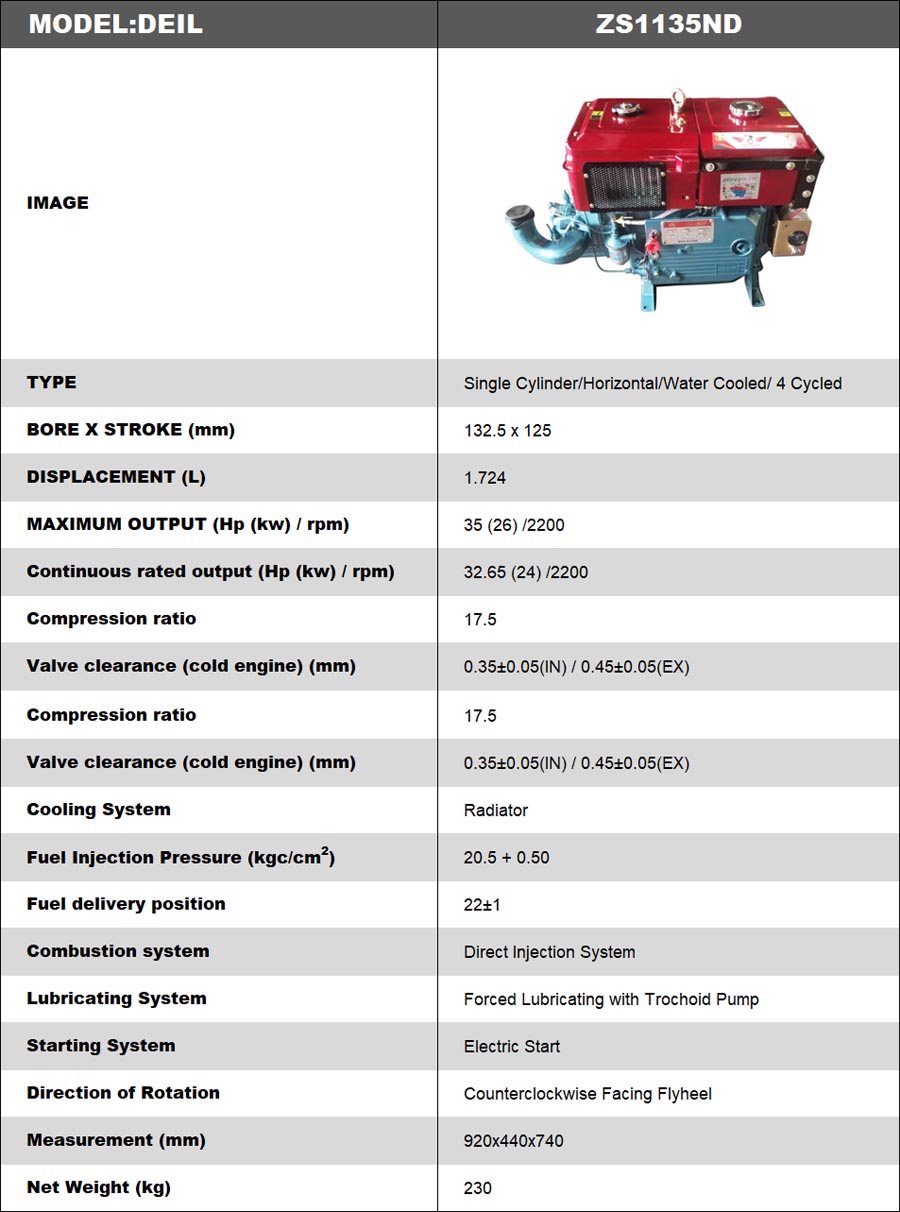

MODEL: DEIL ZS1135ND

• Type: Single Cylinder/Horizontal/Water Cooled/ 4 Cycled
• Bore x Stroke (mm): 132.5 x 125
• Displacement (L): 1.724
• Maximum Output (HP (Kw) / rpm): 35 (26) /2200
• Continuous Rated Output (Hp (Kw) / rpm): 32.65 (24) /2200
• Compression Ratio: 17.5
• Valve Clearance (Cold Engine) (mm): 0.35±0.05(IN) / 0.45±0.05(EX)
• Cooling System: Radiator
• Fuel Injection Pressure (kgc/cm²): 20.5 + 0.50
• Fuel Delivery Position: 22±1
• Combustion System: Direct Injection System
• Lubricating System: Forced Lubricating with Trochoid Pump
• Starting System: Electric Start
• Direction of Rotation: Counterclockwise Facing Flyheel
• Measurement (mm): 920x440x740
• Net Weight (kg): 230
