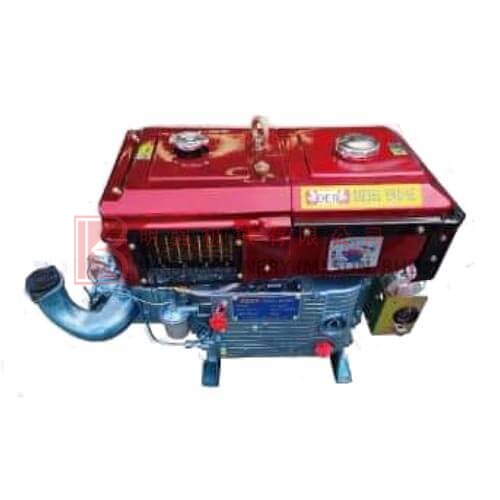

DEIL Diesel Engine -ZS1130ND

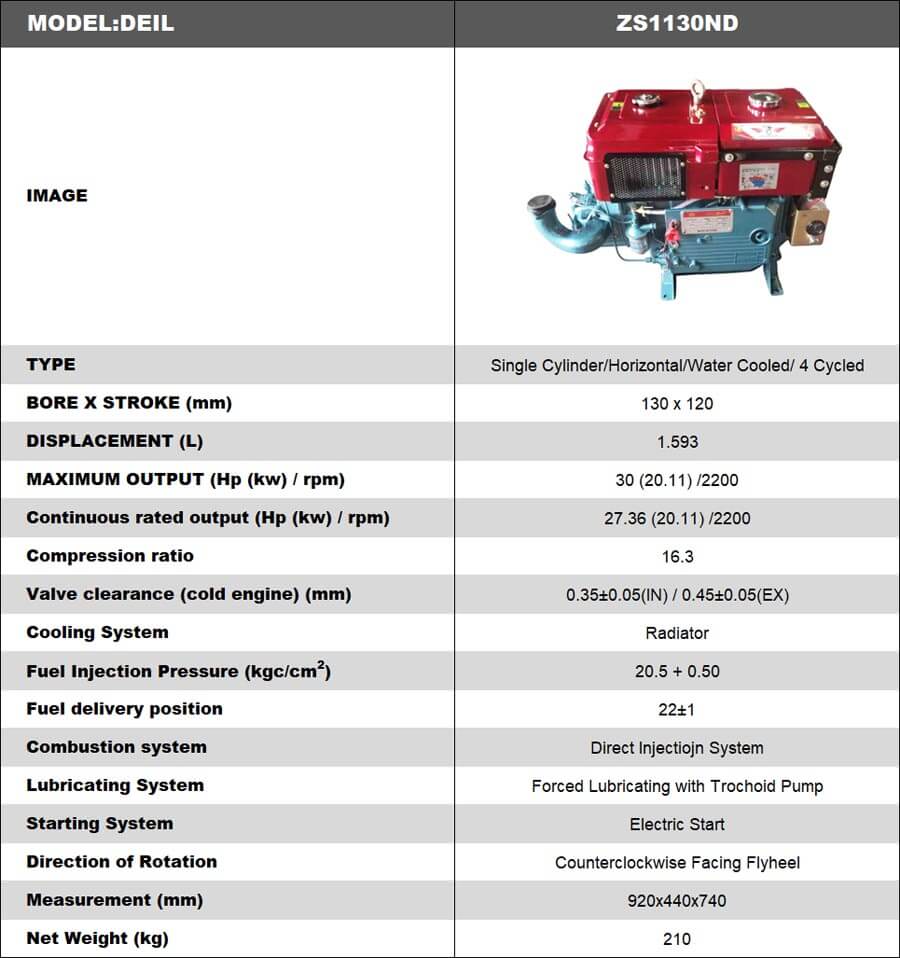

MODEL: DEIL ZS1130ND

• Type: Single Cylinder/Horizontal/Water Cooled/ 4 Cycled
• Bore x Stroke (mm): 130 x 120
• Displacement (L): 1.593
• Maximum Output (HP (Kw) / rpm): 30 (20.11) /2200
• Continuous Rated Output (Hp (Kw) / rpm): 27.36 (20.11) /2200
• Compression Ratio: 16.3
• Valve Clearance (Cold Engine) (mm): 0.35±0.05(IN) / 0.45±0.05(EX)
• Cooling System: Radiator
• Fuel Injection Pressure (kgc/cm²): 20.5 + 0.50
• Fuel Delivery Position: 22±1
• Combustion System: Direct Injection System
• Lubricating System: Forced Lubricating with Trochoid Pump
• Starting System: Electric Start
• Direction of Rotation: Counterclockwise Facing Flyheel
• Measurement (mm): 920x440x740
• Net Weight (kg): 210
